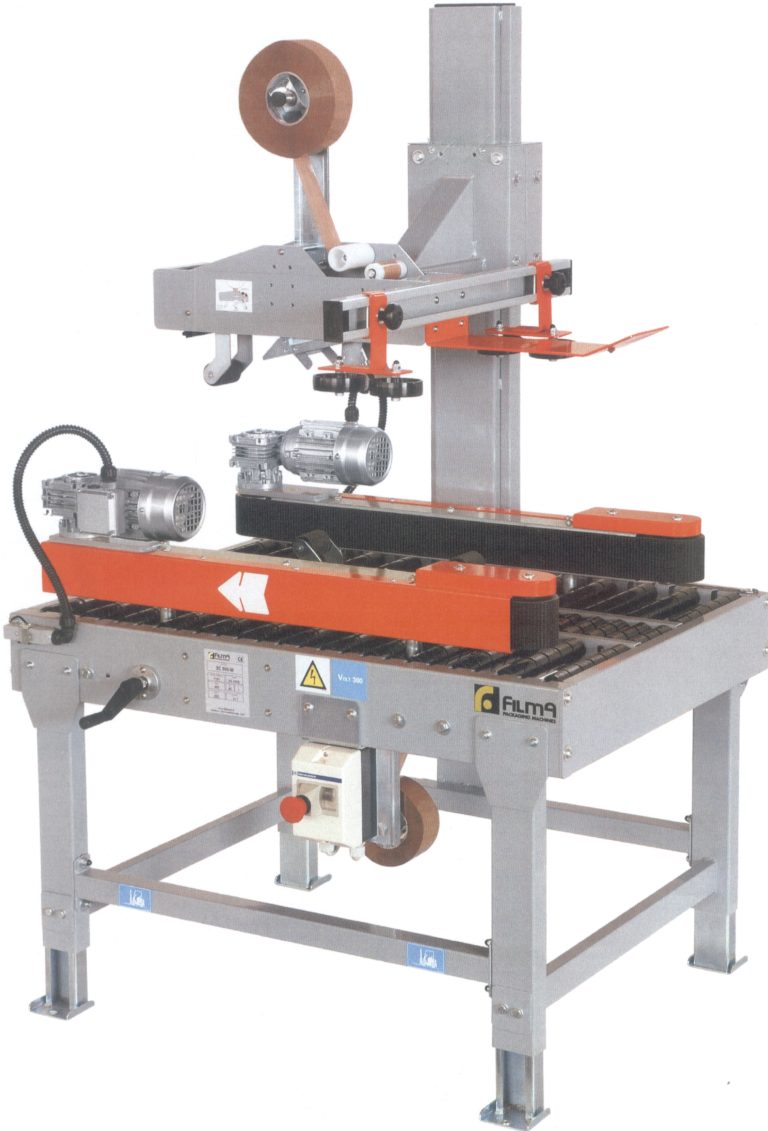

AUTOMATIC FIXED FORMAT TAPING MACHINE

Download the Technical Specifications PDF

• no. 2 side drive belts (h = 70 mm)

• box feed speed: 21 m/min

• Minimum box width: 130 mm

• maximum box width: 500 mm

• Minimum box length: 150 mm

• maximum box length: unlimited

• Minimum box height: 130 mm

• maximum box height: 550 mm

• No. 2 taping units for closing the bottom and top of the box simultaneously

• Max. tape roll width: 50 mm (standard) / 75 mm (optional)

• Max. diameter of the adhesive tape roll: 410 mm

• Adjustable front/back tape flap length to 50mm or 70mm

• handwheel for adjustment according to the width of the box

• knob for adjustment according to the height of the box

• upper pressure rollers (on the side)

• Worktop height: adjustable from 550 mm to 750 mm

• Standard voltage: 380V – 50Hz – 3-phase

• Machine dimensions: 720 mm x 920 mm (width x length)
