PRISMA Checkweighers

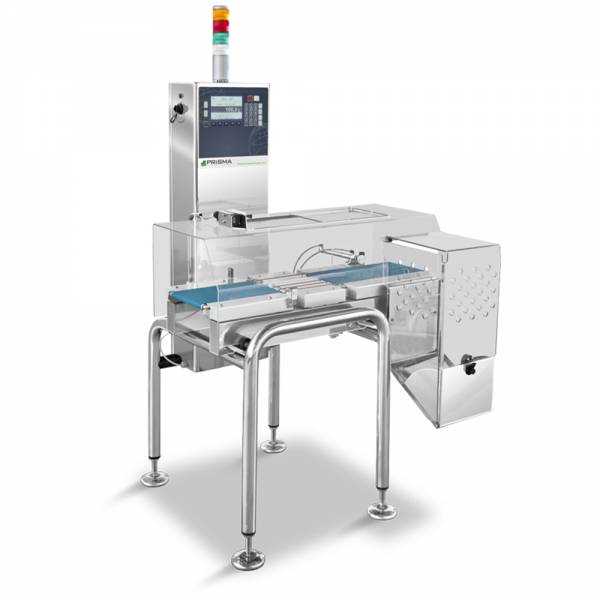

Checkweigher for pharmaceutical products in small formats at high speed. With a maximum capacity of 600 g, accuracy from ± 0.1 g and a production rate of 500 ppm, 01D3 pharma is the ideal instrument to check high value products like boxes, flow-packs, bottles and tubes. Made entirely of stainless steel, it has an IP54 degree of protection and high configurability, thanks to the numerous options available. Double load cell

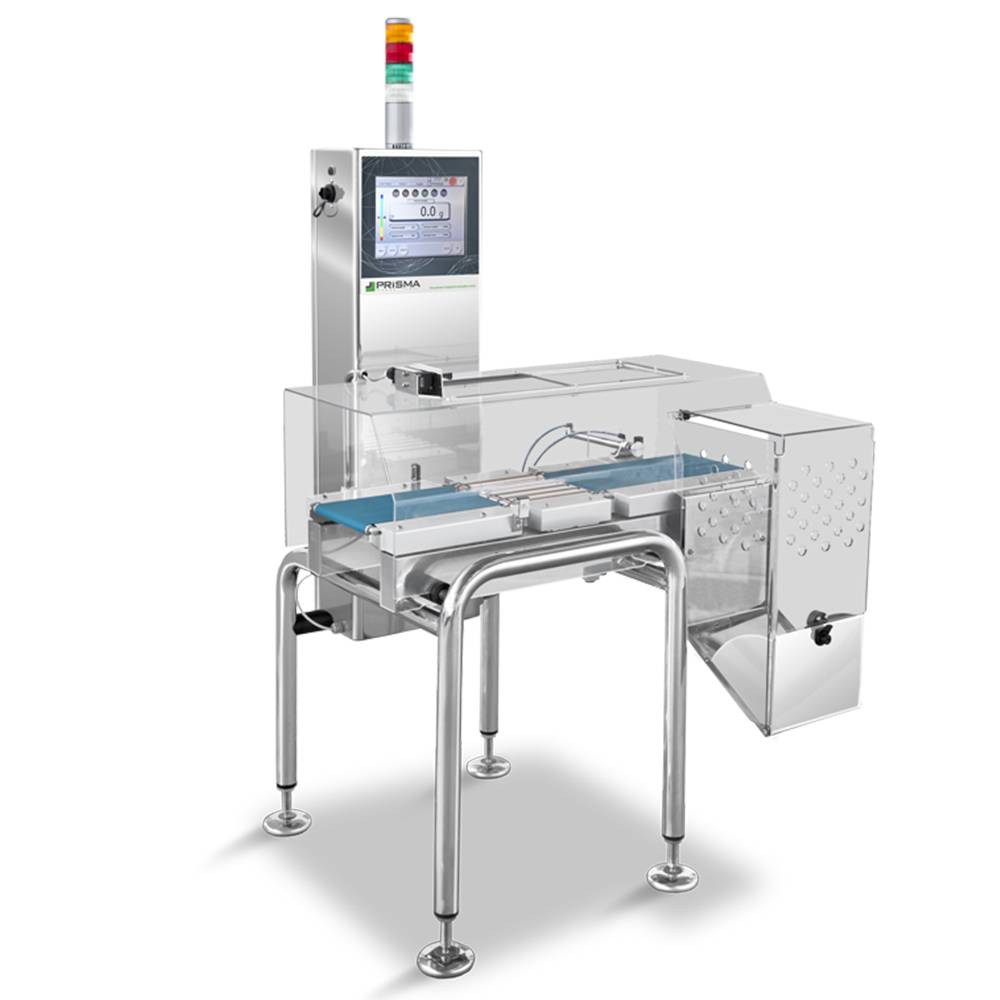

Checkweigher system for pharmaceutical products in small formats at high speed. With a maximum capacity of 600 g, accuracy from ± 0.1 g and a production rate of 500 ppm, 01T3 pharma is the ideal instrument to check high value products like boxes, flow-packs, bottles and tubes. The T3 electronics offer numerous standard advantages, including an intuitive touchscreen display, 200 storable programs and the set-up to communicate with the outside. Made entirely of stainless steel, it has an IP54 degree of protection and high configurability, thanks to the numerous options available. Double load cell

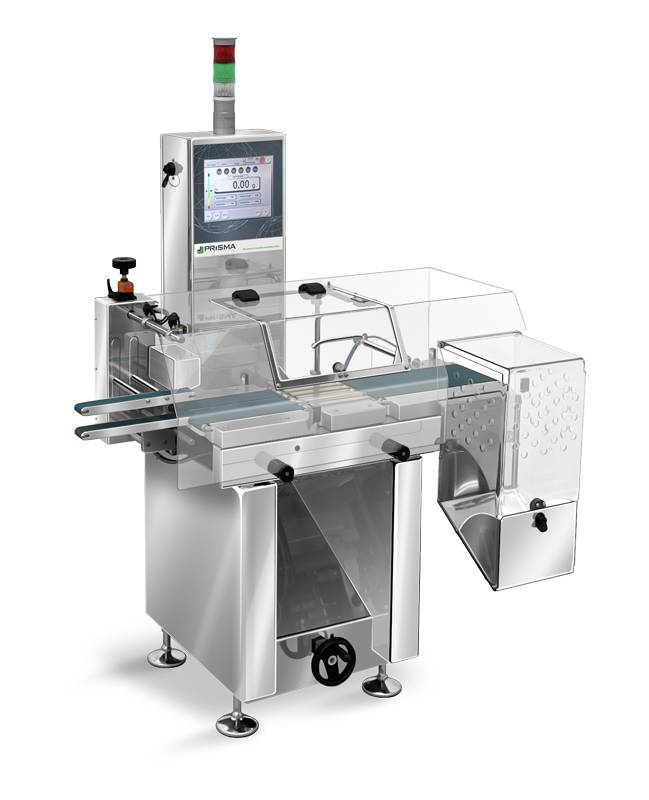

The 1CW11 Pharma is a pharmaceutical checkweigher equipped with an up/down belt that extracts the box directly from the upstream cartoning machine, creates the correct pitch between the products and detects the weight through an electromagnetic cell. This feature allows it to reach extremely high levels of accuracy (from 0.05 g) even at high speeds. An instrument with the ideal performance to check with extreme accuracy small format, high value cases and boxes. The equipment features also all the advantages of the T3 electronics and various mechanical devices that simplify the positioning of the extractor in millimetric correspondence with the upstream machine.

Extremely versatile and functional in line checkweigher for small-medium formats. With a maximum capacity of 1600 g, accuracy from ± 0.5 g and a production rate of 300 ppm, the 08D3 compact checkweigher is the ideal instrument for the most common weight checking requirements on an enormous variety of packages: trays, bags, cans, bottles, boxes of different shapes and sizes. Made entirely of stainless steel, it has an IP54 degree of protection and high configurability, thanks to the numerous options available. Double load cell weighing system.

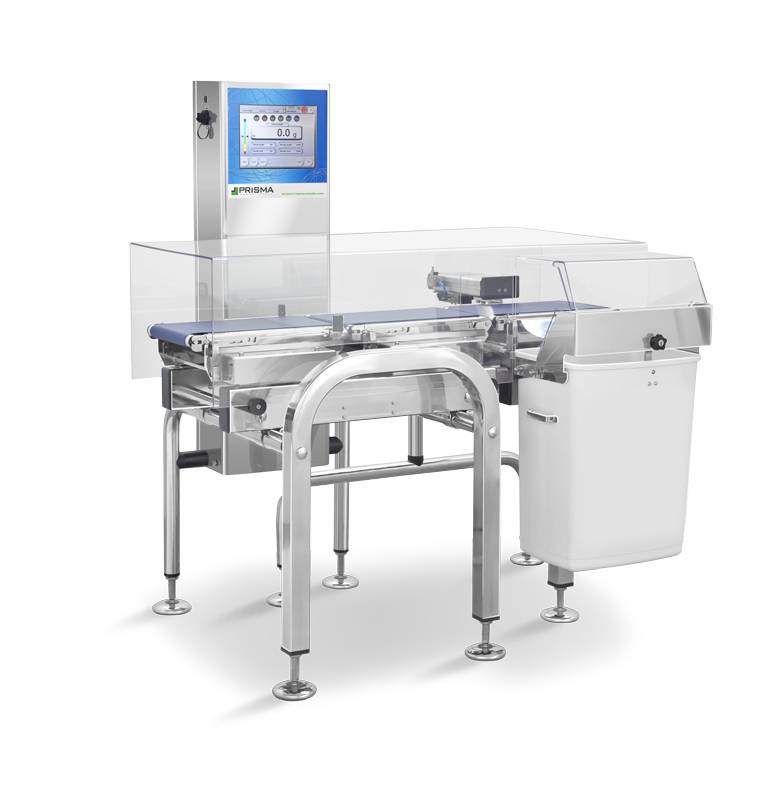

Extremely versatile and functional checkweigher for small-medium format products with touchscreen display. With a maximum capacity of 3200 g, accuracy from ± 0.5 g and a production rate of 300 ppm, the 08T3 is a high-level dynamic weighing system that ensures high performance and reliability for any weight checking requirements on a great variety of packages: trays, bags, cans, bottles, boxes of different shapes and sizes. Made entirely of stainless steel, it has an IP65 degree of protection and high configurability, thanks to the numerous options available. MID certifiable.

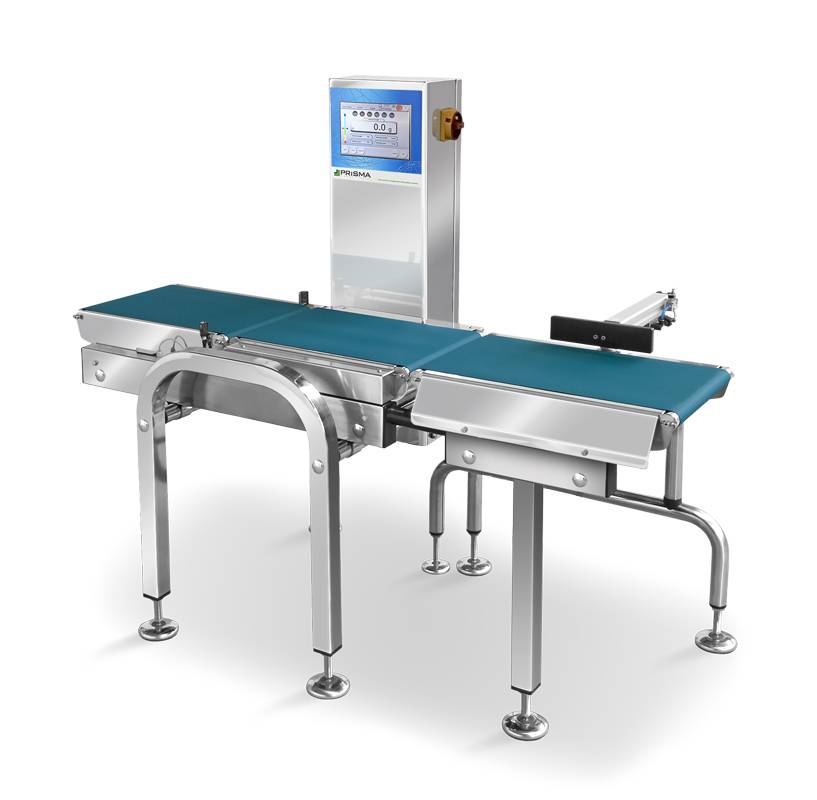

Checkweigher scale for medium format products. With a maximum capacity of 10000 g, accuracy from ± 1 g and a production rate of 100 ppm, the 09T3 is a suitable instrument to check bags, cans, boxes of different shapes and sizes. Made entirely of stainless steel, this checkweigher has an IP65 degree of protection and high configurability, thanks to the numerous options available. The scale features a double load cell weighing system.

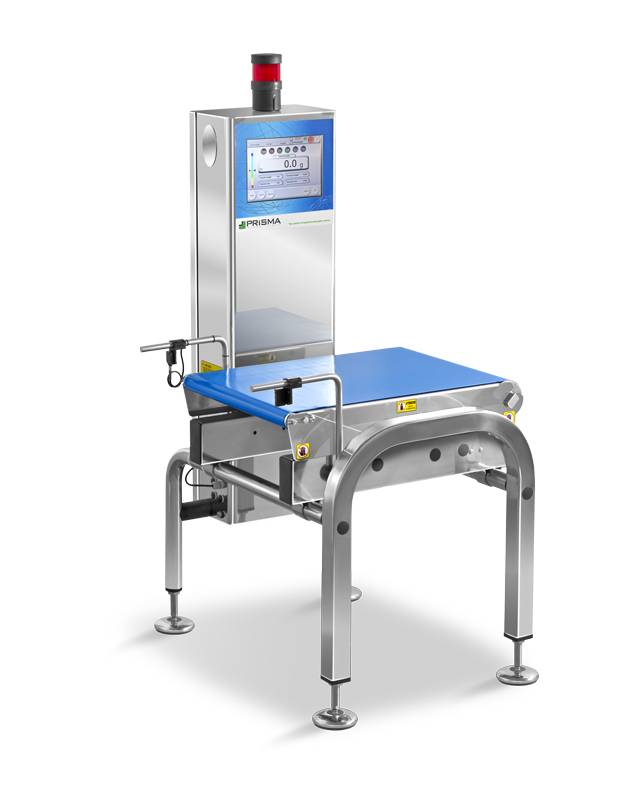

Checkweigher for large format products and completeness check, with MID approval option. With a maximum capacity of 40000 g, accuracy from ± 5 g and a production rate of 60 ppm, the 14T3 is a classic end-of-line instrument, a top-level equipment suitable for checking sacks, cardboard boxes and barrels. Detection occurs through a dual load cell system positioned on a belt conveyor. It has an IP54 degree of protection and can be paired with roller infeed and outfeed systems.

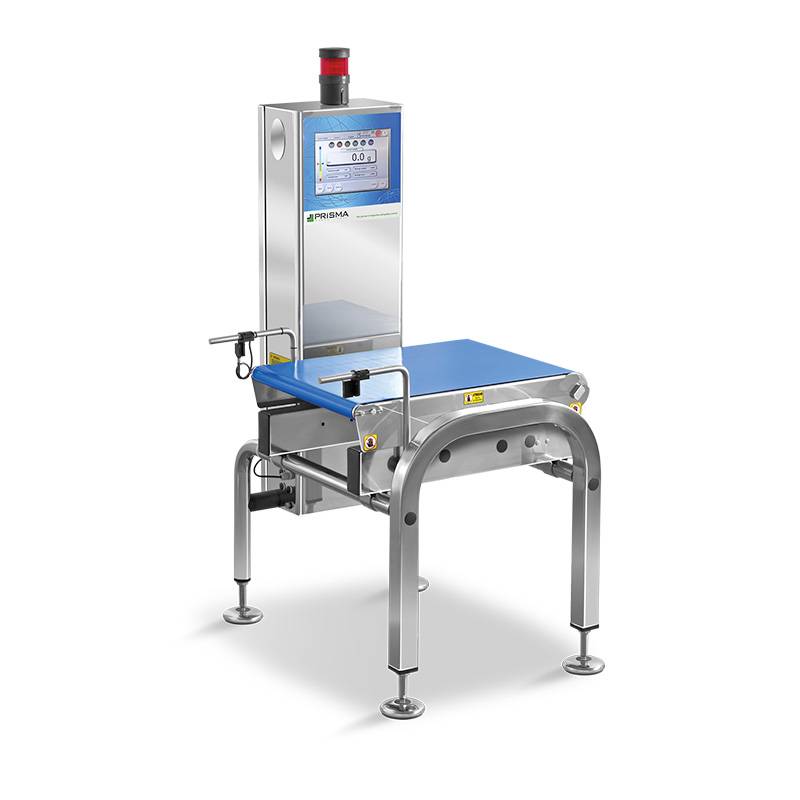

Checkweigher for large format products and completeness check, with MID approval option. With a maximum capacity of 30000 g, accuracy from ± 10 g and a production rate of 30 ppm, the 5CW11 is a classic end-of-line instrument, a top-level equipment suitable for checking sacks, cardboard boxes and barrels.Detection occurs through a dual load cell system positioned on a belt conveyor.It has an IP54 degree of protection and can be paired with roller infeed and outfeed systems.

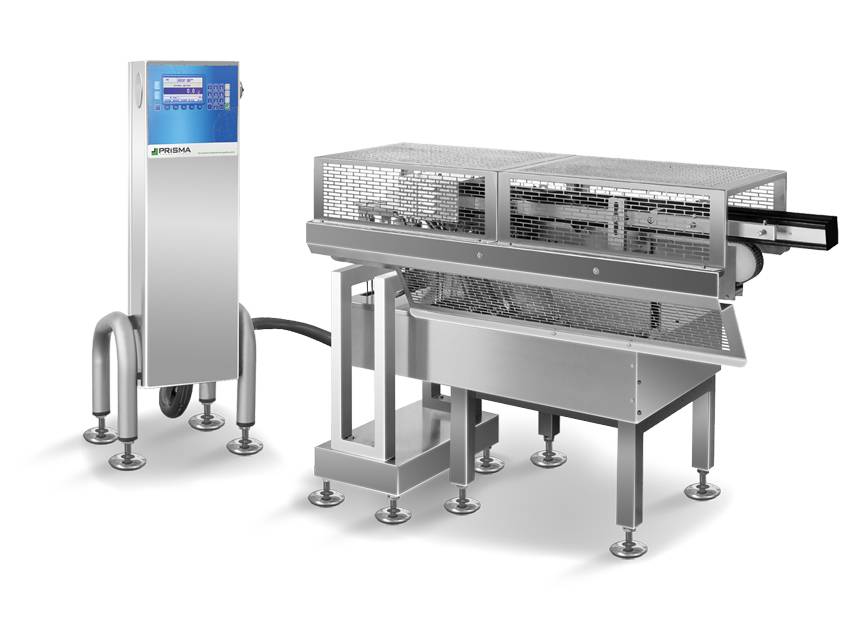

The 31D3 model is a high speed weighing system for cylindrical packages. It is an extremely high-performance system that can reach a production rate of 1000 ppm. The complete configuration of outfeed conveyors consists of a “turnkey” system able to withstand the intense shifts and extreme production pace of big food manufacturers.

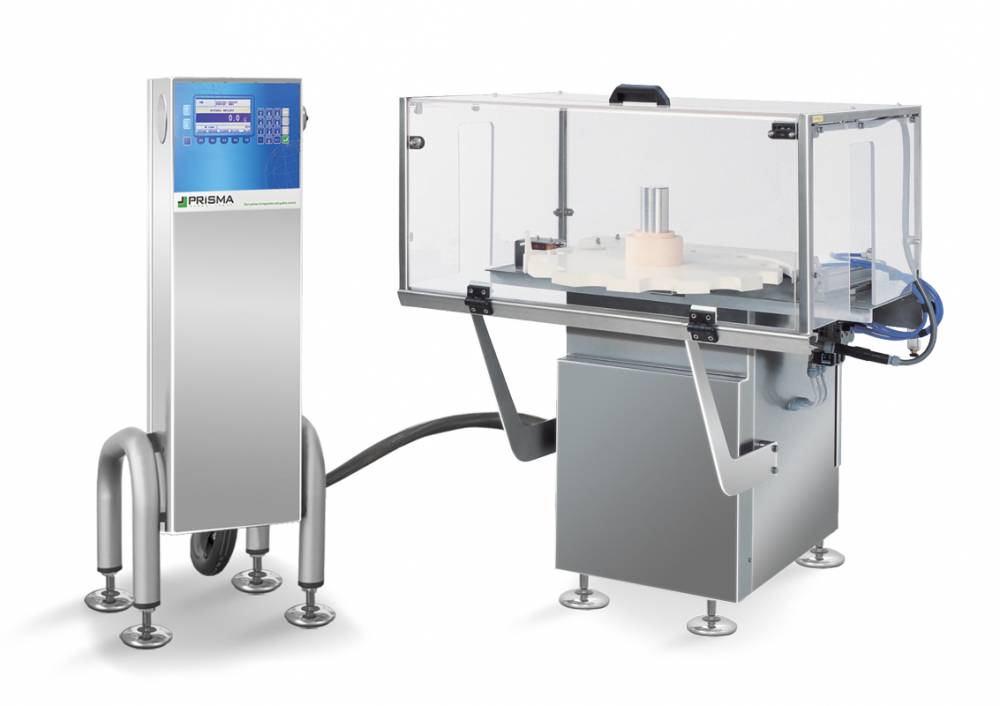

Checkweigher for small and medium sized cylindrical packages like bottles, jars and cans. The 35D3 was designed to run alongside the customer’s line conveyor without interrupting it, reducing installation costs and time to a minimum. The machine picks the product up directly from the conveyor and, via an alternating feed rotating system, positions and stabilises the product on a static weighing plate, thereby obtaining optimal levels of accuracy and repeatability despite high production speeds. This makes the instrument ideal to check high value, low stability products.

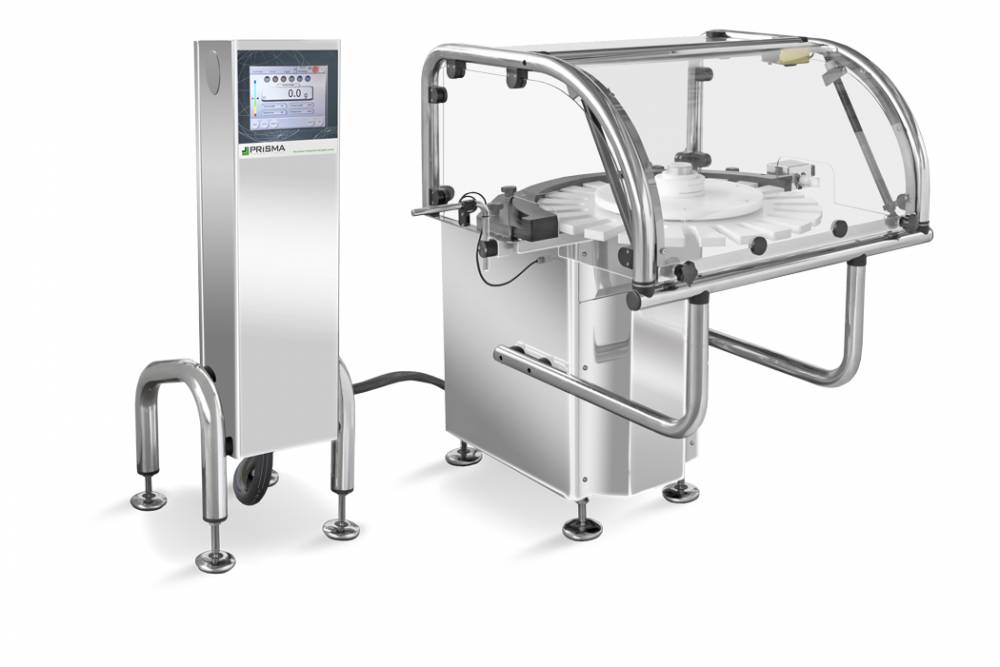

In motion checkweigher for small and medium sized cylindrical pharmaceutical packages. The 35T3 pharma has particular features that make it especially suitable for the pharmaceutical sector. It was designed to run alongside the customer’s line conveyor without interrupting it, reducing installation costs and time to a minimum. The machine picks the product up directly from the conveyor and, via an alternating feed rotating system, positions and stabilises the product on a static weighing plate, thereby obtaining optimal levels of accuracy and repeatability despite high production speeds. This makes the instrument ideal to check high value, low stability products. The control panel, equipped with a separate structure with IP54 degree...

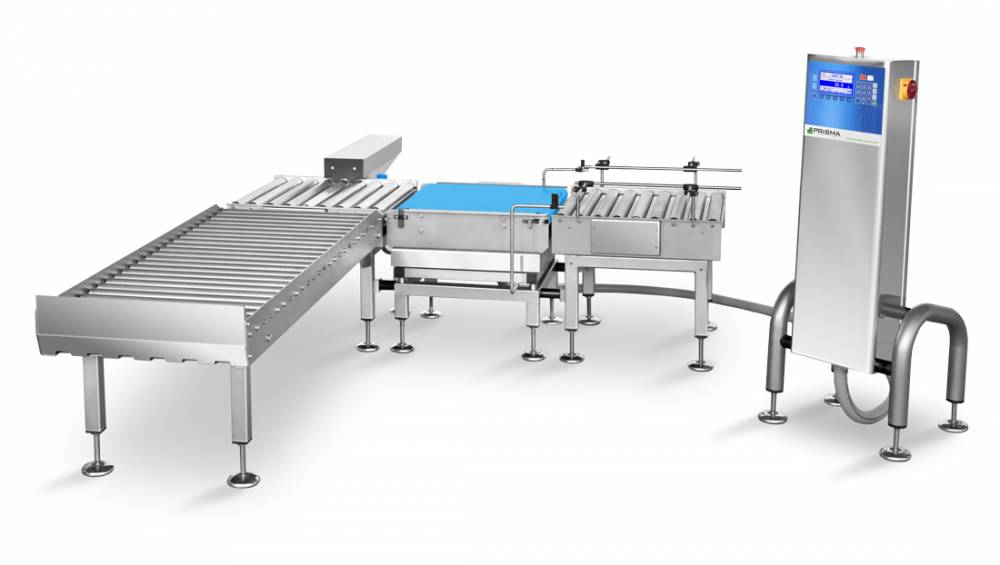

System to weigh and completely manage large format products. In addition to the weighing plate, the system consists of motorised infeed and outfeed rollers and a pneumatic cylinder ejector that diverts out of tolerance products onto an idle roll roller. With a maximum capacity of 60000 g, accuracy from ± 5 g and a production rate of 60 ppm, the 14D3 with roller is a “turnkey” end-of-line instrument, suitable for checking weight and completeness of sacks, cardboard boxes and barrels. The electronic panel is equipped with a separate structure.

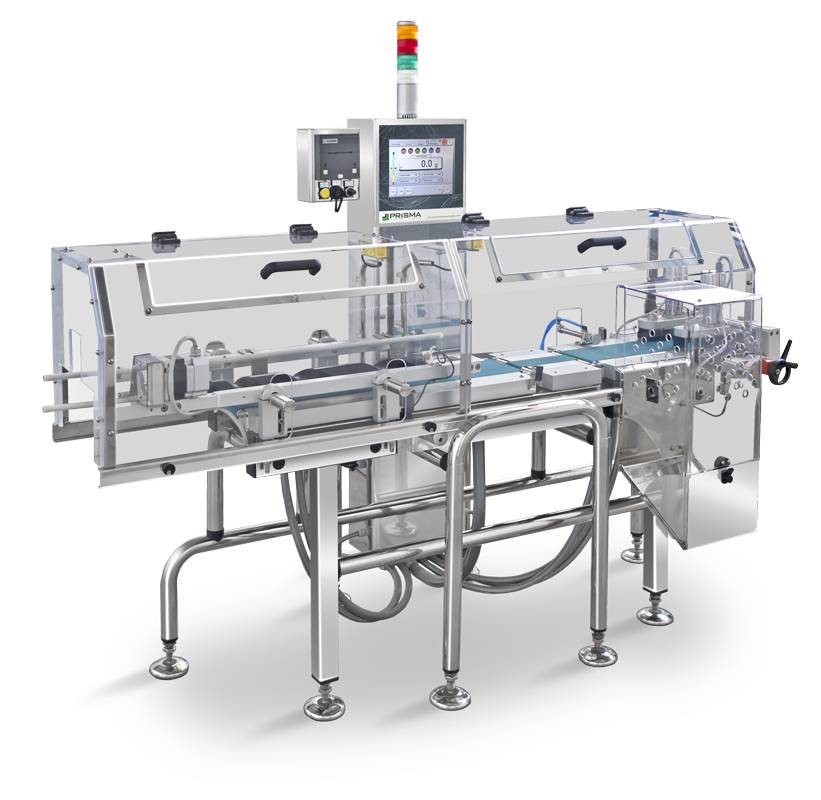

Checkweigher equipped with conveyor with infeed screw to properly space and stabilise the products and adjustable outfeed tangential belts. Designed specifically to check pharmaceutical products in small cylindrical, particularly unstable packages at high speeds. Maximum capacity of 1600 g, accuracy from ± 0.1 g and production rate of 500 ppm. Made entirely of stainless steel, it has an IP54 degree of protection and double load cell weighing system.

Checkweigher equipped with modular chain conveyor and infeed screw to properly space and stabilise the products. Designed specifically to check food products in tins, jars and cans at high speeds. Maximum capacity of 3200 g, accuracy from ± 0.5 g and production rate of 300 ppm. Made entirely of stainless steel, it has an IP65 degree of protection and double load cell weighing system.

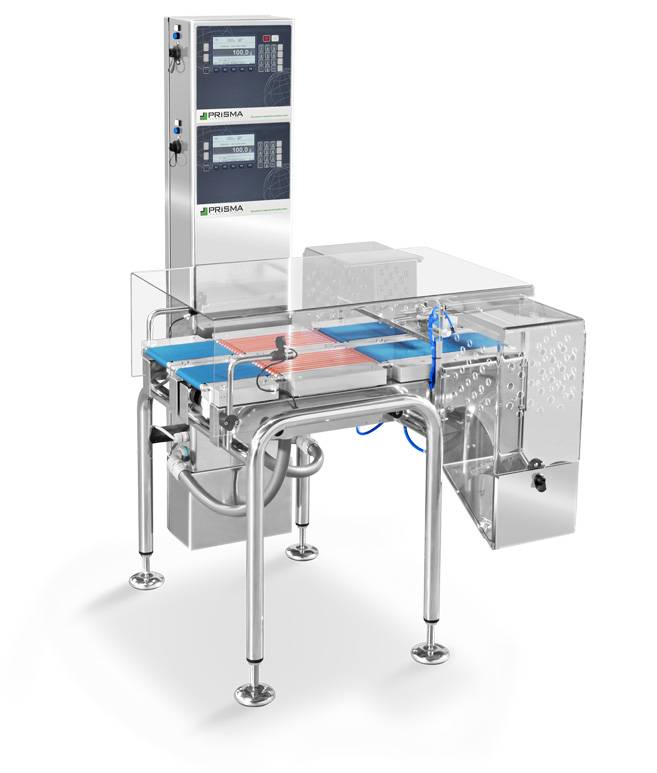

Checkweigher for pharmaceutical products consisting of two separate lines, each with its own control panel, rejection system and rejection bin. Conceptually speaking, they are two separate machines, side by side but completely independent in every respect: from setting the speed, capacity and tolerance, therefore simultaneously managing two products, to separate production reports per line; from the separate motorisations to the specific rejection systems. In practice, putting this checkweigher on your line means having two fully accessorised 01D3 pharma machines with all the advantages of having to manage and service only one system, including price. Maximum capacity of 600 g, accuracy from ± 0.1 g and production rate of 1000 ppm. Made entirely of...
