Details

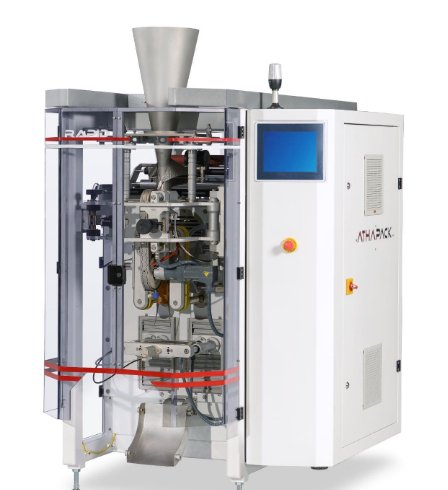

The RAPID series, which works with the Continuous Motion system, reaches maximum speeds that can be reached using Servo-Motion technology. As Continuous Motion system works 30% – 50% faster than Intermittent motion system, they are more perefered. However, there are other benefits of this series, such as low film Speed, less film distortion, no damage to product, more smoother vertical sealing jaw. It is the most preferred series for chips and powder products due to these benefits. Thanks to the modular design of the RAPID Series, it can be upgraded at any time with accessories and devices to produce different bag styles and respond to the market needs.
General Features
- Continuous Motion System
- All surfaces in contact with the product are AISI 304 stainless steel
-
Nitrogen gas flushing system (option)
- Air conditioning on the control cabinet (option)
- Static Eliminator (option)
- Printer application (option)
- Vacuum application on drive belts (option)
- Automatic Film changeover (option)
- The parameters and settings are made easily from the 15” industrial PC
-
All functions of the machine are controlled by the Motion Controller
- All main movements in the machine are carried out by independent Servo motors
- Works with and without photocell
- The sealings are provided by P.I.D Heat Control System
- With film adding Unit, bobbin replacement is easy
- With the Auto-Film Centering System, the film is always centred
- Auto-Film Merkezleme Sistemi ile film sürekli eksende
- With the Auto-Film unwinding System, the reel is continuously opened at the same tension.
-
When the film is finished, the machine is automatically stopped
- Any error occurs, the machine is automatically stopped and the errors will be displayed on the screen
- Packaging materials: Polypropylene, polyethylene, all laminated films, barrier film, water-soluble film
- Types of bags: pillow bag, gusseted bag, flat bottom bag, edge scratch bag and string bags
- Suitable for different types of filling systems: Volumetric & Auger filler, Multihead & Linear weighers and various liquid fillers
- CE standard
Technical Detail
| RAPID CL26/CL36 / Technical Data | ||
| features | CL26 | CL36 |
| mechanical speed | 200 Cycle/min | 180 Cycle/min |
| Package Length | Max. … mm | Max. … mm |
| Package Width | Max. 240 mm | Max. 340 mm |
| Coil Width | Мах. 600 mm | Max. 900 mm |
| Coil Diameter | Мах. 400 mm | Max. 400 mm |
| Power Consumption | 6 kw | 7.5 kw |
| voltage | 380 V 3 Phase 50 Hz | 380 V 3 Phase 50 Hz |
| Air Consumption | 150 l/min | 150 I/min |
| air pressure | Міп 6 Bar | Min 6 Bar |
| Weight | 1150 kg | 1400 kg |
| Dimensions (Width x Length x Height) | 1485 x 2250 x 1890 (mm) | 1640 x 2250 x 2250 (mm) |
