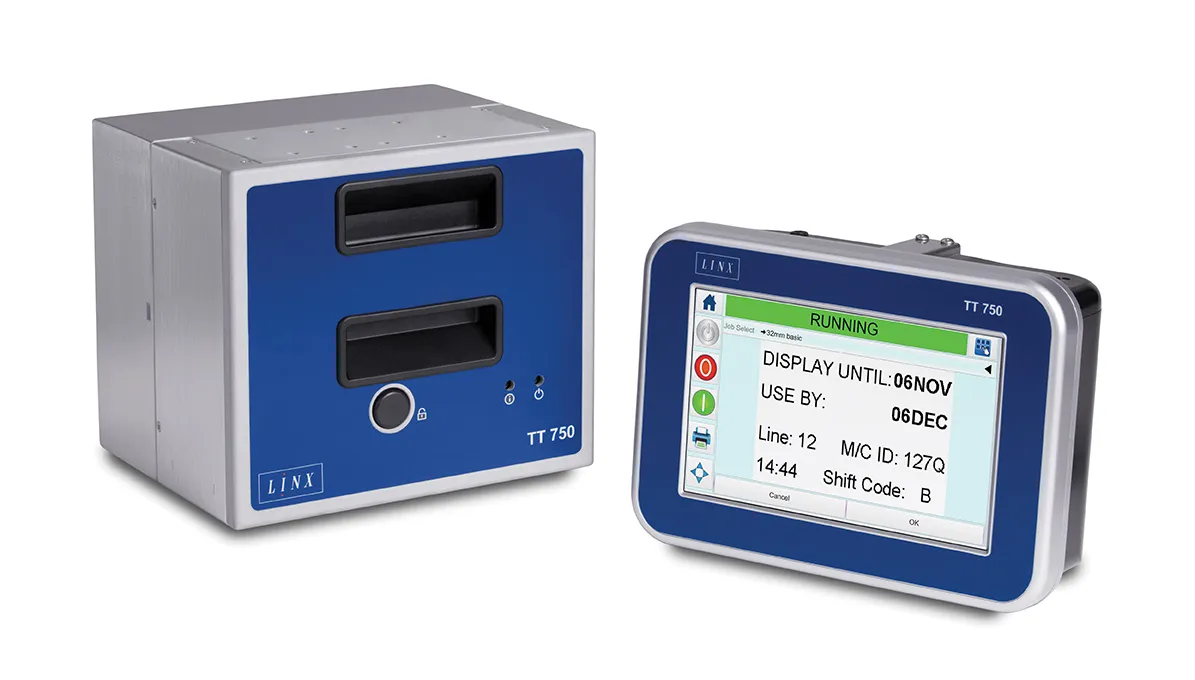

Linx TT 750
Packaging printing – best before dates and batch codes.
The Linx TT 750 is a simple printer designed for printing onto flexible materials including bags, pouches, labels and flow wrap, ideal when coding areas up to 2.09in x 7.87in.
Low total cost of ownership, increased uptime, easy to use.
Key benefits
- Operates without compressed air reducing installation and operating costs while maintaining consistent print quality
- Large range of ribbons to better meet your application and production line printing needs
- Optimised ribbon usage with bi-directional stepper motors delivering more prints per ribbon

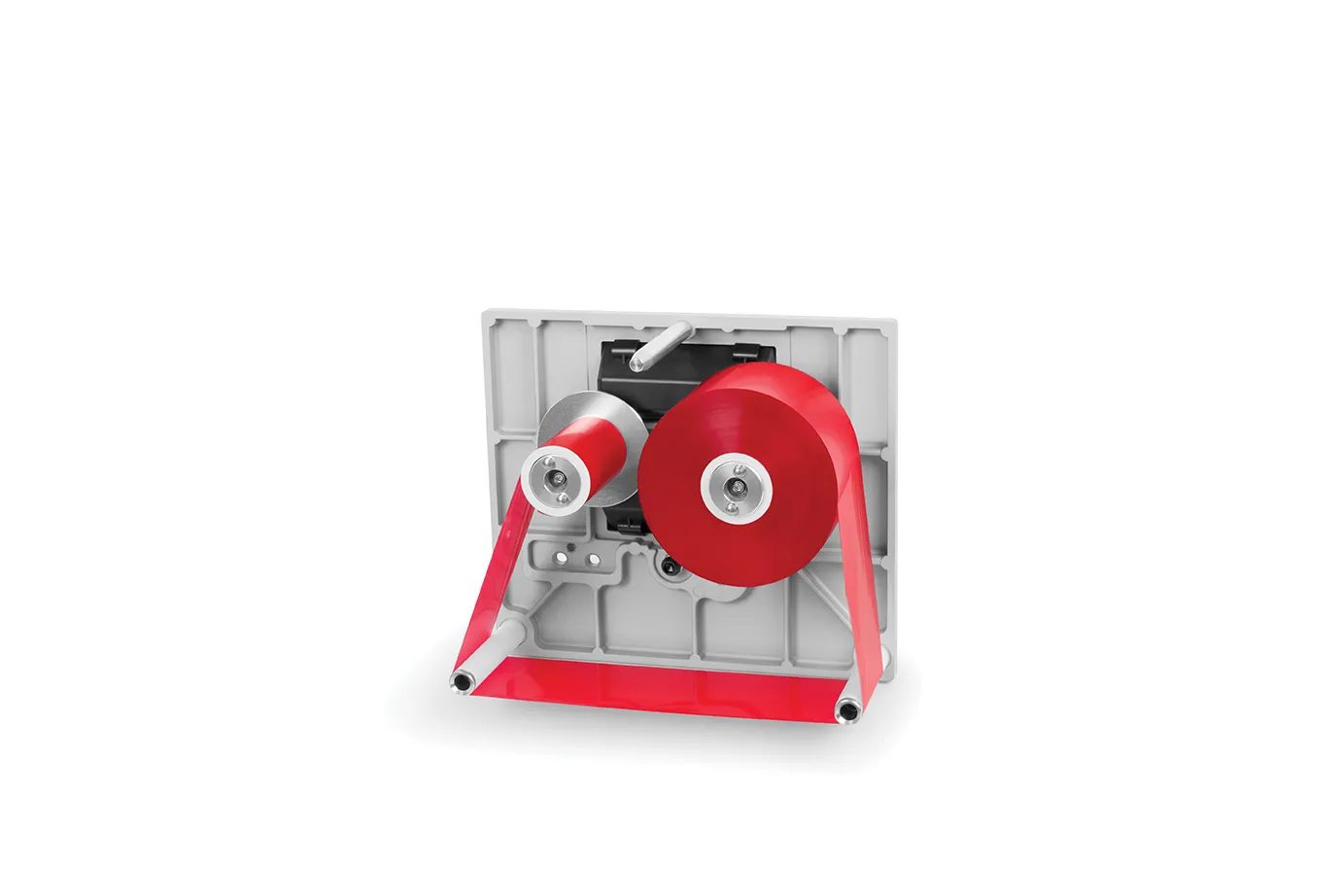

- Lightweight, simple, push button ribbon cassette system for quick and easy ribbon changes
- Optimal number of user maintainable parts that are easy to replace
- Easy to set and maintain print quality with electronic pressure control
- Simple cassette system minimises errors during ribbon replacements
- Easy to use colour touch screen – fewer errors and hassle-free operation
Ressources
Linx TT Series Video English
Linx TT 750 Datasheet
Linx TT Series Infographic
Technical Specifications
Printing Capability
- Ribbon widths: .79in to 2.17in
- Print area – intermittent motion mode: up to 2.09in (W) x 2.95in (L)
- Print area – continuous motion mode: up to 2.09in (W) x 7.87in (L)
- Maximum throughput: 250 prints per minute
- Maximum ribbon length – 3937ft
- Print speed – intermittent motion mode: 1.57in/sec to 29.53in/sec
- Print speed – continuous motion mode: 1.57in/sec to 29.53in/sec
- Ribbons: Range of types, colors, lengths and widths
Programming Features
- Linx CLARiSOFT message design software
- Barcodes
- Fixed/variable text and numeric fields
- Auto incrementing/ decrementing text, counters and barcodes
- Basic shape drawing
- Flexible date/time formats
- Auto best before date calculation
- Formats for shift coding
- Multiple graphic formats
- …and more
Physical Characteristic
- Operates without compressed air
- Class leading lightened push button open/push to close, simplest ribbon threading cassette system
- Clutchless bi-directional ribbon drive
- 8.0” WVGA (800×480) touch screen graphic user interface
- Universal bracket systems for integrating printer into intermittent and continuous motion packaging machinery
