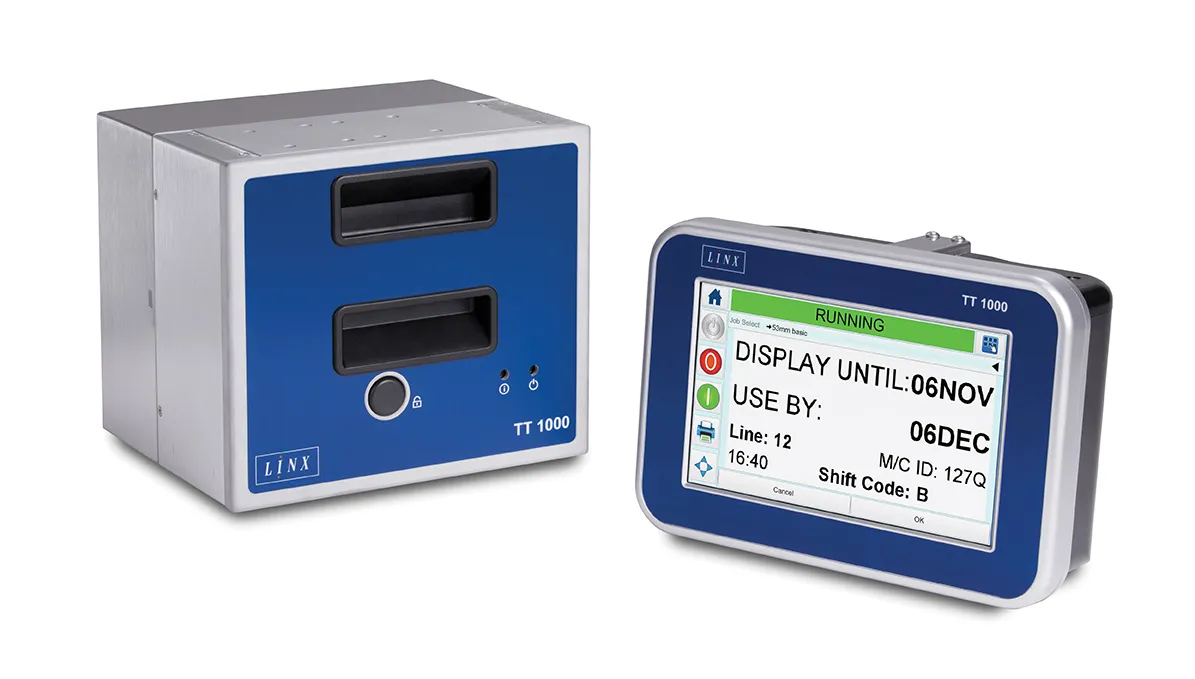

Linx TT 1000
Flexible packaging and other flexible material printing at widths up to 107mm
The Linx TT 1000 is a simple printer designed for printing onto flexible materials including bags, pouches, labels and flow wrap, ideal when coding areas up to 107mm x 300mm.
Low cost of ownership, increased uptime, easy to use.
Key benefits
- Operates without compressed air reducing installation and operating costs while maintaining consistent print quality
- Large range of ribbons to better meet your application and production line printing needs
- Optimised ribbon usage with bi-directional stepper motors delivering more prints per ribbon

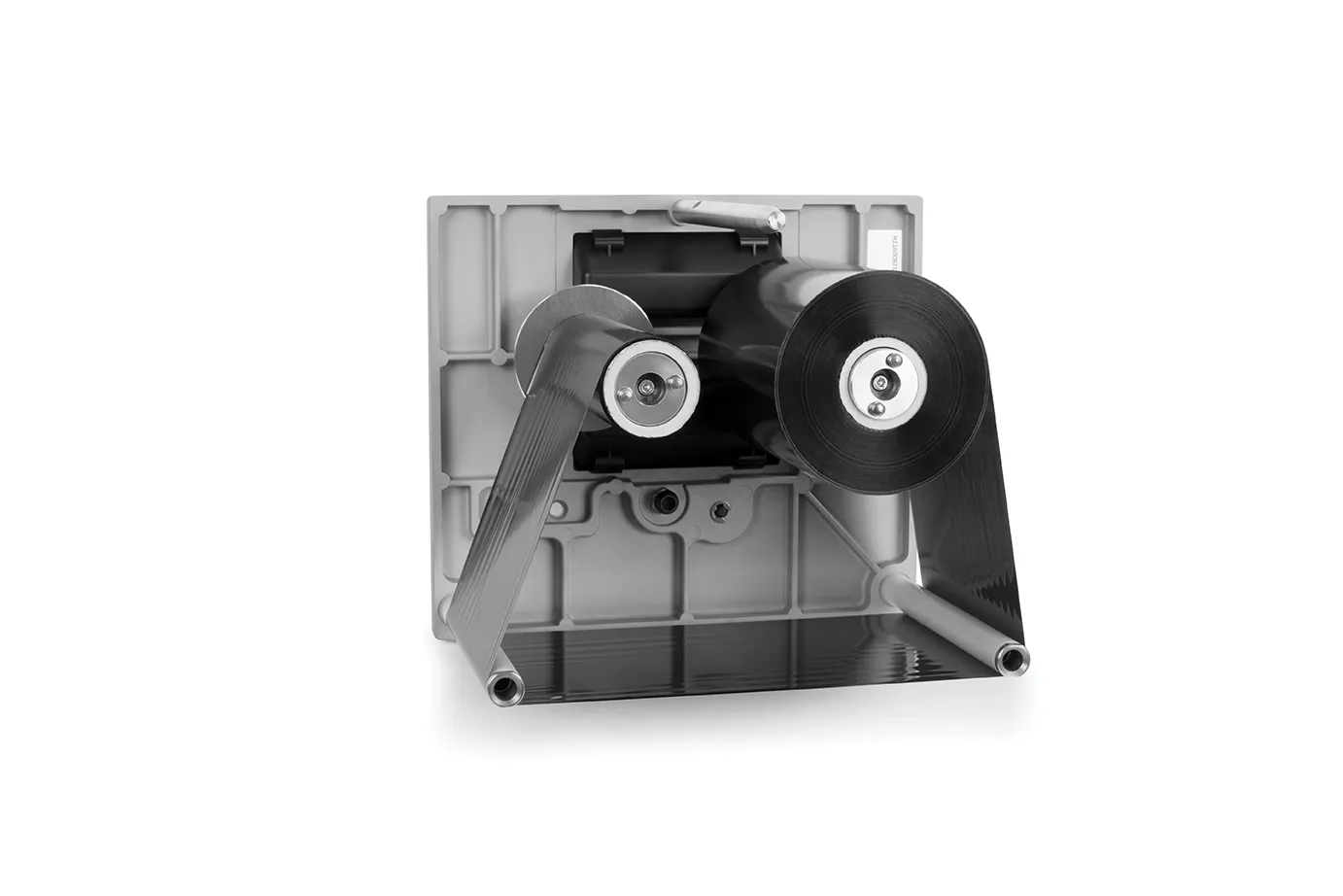

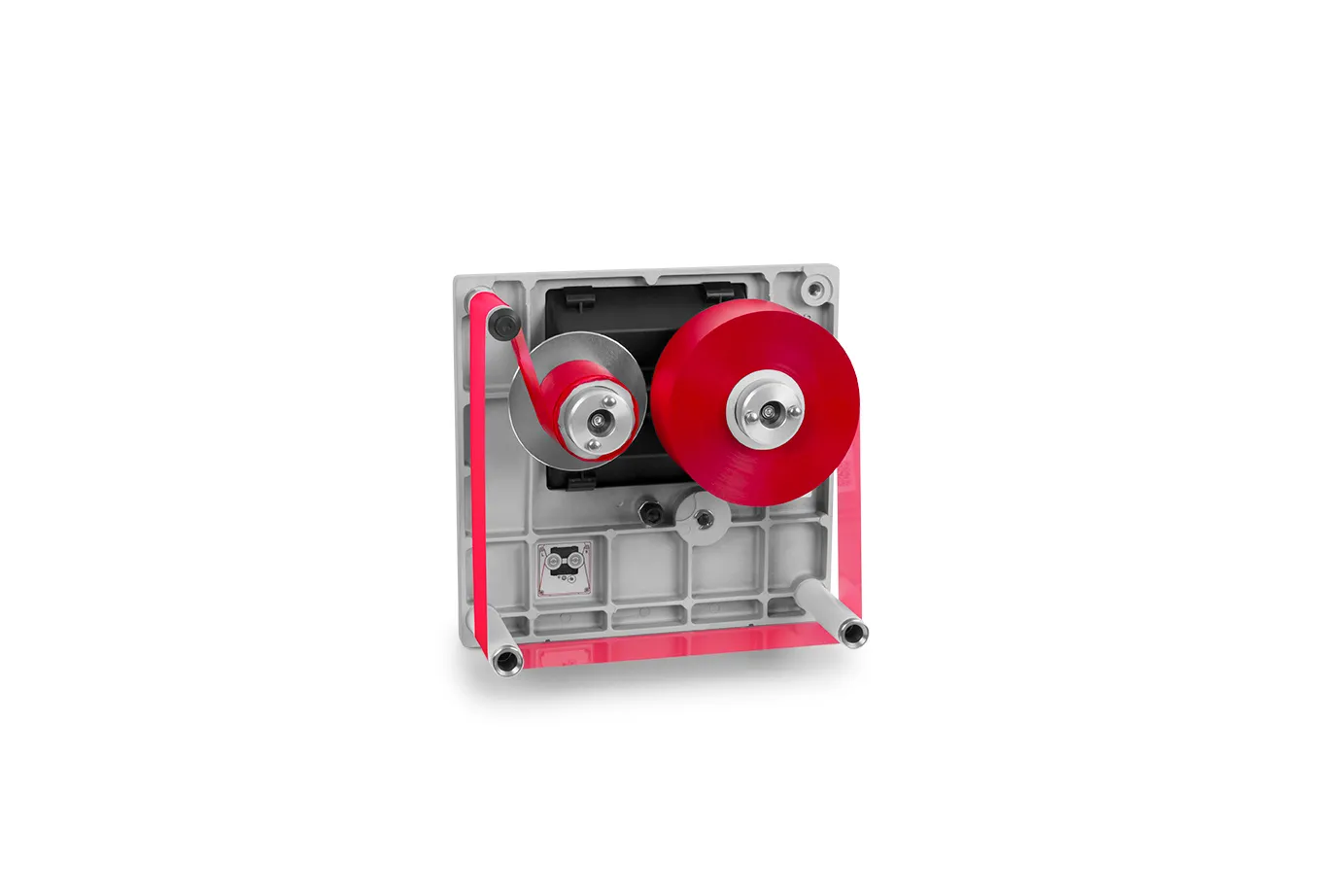

- Lightweight, simple, push button ribbon cassette system for quick and easy ribbon changes
- Optimal number of user maintainable parts that are easy to replace
- Easy to set and maintain print quality with electronic pressure control
- Simple cassette system minimises errors during ribbon replacements
- Easy to use colour touch screen – fewer errors and hassle-free operation
Ressources
Linx TT Series Video English
Linx TT Series Infographic
TT 1000 Datasheet
Technical Specifications
Printing Capability
- Ribbon widths: 20mm to 110mm
- Print area – intermittent motion mode: up to 107mm (W) x 75mm (L)
- Print area – continuous motion mode: up to 107mm (W) x 300mm (L)
- Maximum throughput: 700 prints per minute
- Maximum ribbon length – 1200m
- Print speed – intermittent motion mode: 10mm/sec to 800mm/sec
- Print speed – continuous motion mode: 1mm/sec to 1000mm/sec
- Ribbons: Range of types, colours, lengths and widths
Programming Features
- Linx CLARiSOFT message design software
- Barcodes
- Fixed/variable text and numeric fields
- Auto incrementing/ decrementing text, counters and barcodes
- Basic shape drawing
- Flexible date/time formats
- Auto best before date calculation
- Formats for shift coding
- Multiple graphic formats
- …and more
Physical Characteristic
- Operates without compressed air
- Class leading lightened push button open/push to close, simplest ribbon threading cassette system
- Clutchless bi-directional ribbon drive
- 8.0” WVGA (800×480) touch screen graphic user interface
- Universal bracket systems for integrating printer into intermittent and continuous motion packaging machinery
