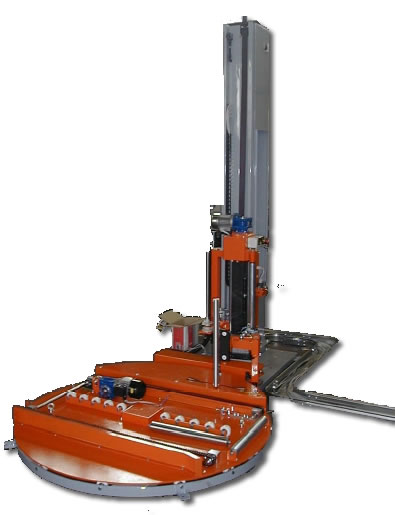

Fully automatic inline pallet wrapper with chain pallet translation, particularly suitable for lines with a minimum work surface height of 140 mm.

• Max. pallet size:

  fp/460 = mm. 1200x1000x2200

  fp/470 = mm. 1400x1200x2200

• max. capacity:

  fp/460 = kg. 1000

  fp/470 = kg. 2000

• Worktop height:

  fp/460 = mm. 350

  fp/470 = mm. 400

• Hourly production: 30/35 pallets/hour

• adjustable speed from 7 to 15 rpm.

• Max. film reel height 500 mm – diameter 300 mm

• reel carriage transmission via belt

• programming of the wrapping rounds on the lower part of the pallet

• programming of the wrapping rounds on the upper part of the pallet

• standard wrapping cycle (up + down)

• manual / automatic selector

• pallet reading photocell with different heights

• electromagnetic clutch for film tension regulation

• predisposition for pressing device

• Allen Bradley PLC programmable logic

• inverter for starting, stopping and speed regulation of the rotary table

• inverter for regulating the speed of the reel carriage

• hexa display for parameter/cycle setting and fault reporting

• encoder for determining the table rotation speed and counting frequency

• perimeter safety guards with safety micro switches on the doors

• IP55 console control panel

• accessories on request

the machines can be combined with idle and/or motorised roller conveyors at the entrance and/or exit (see the section relating to handling)
