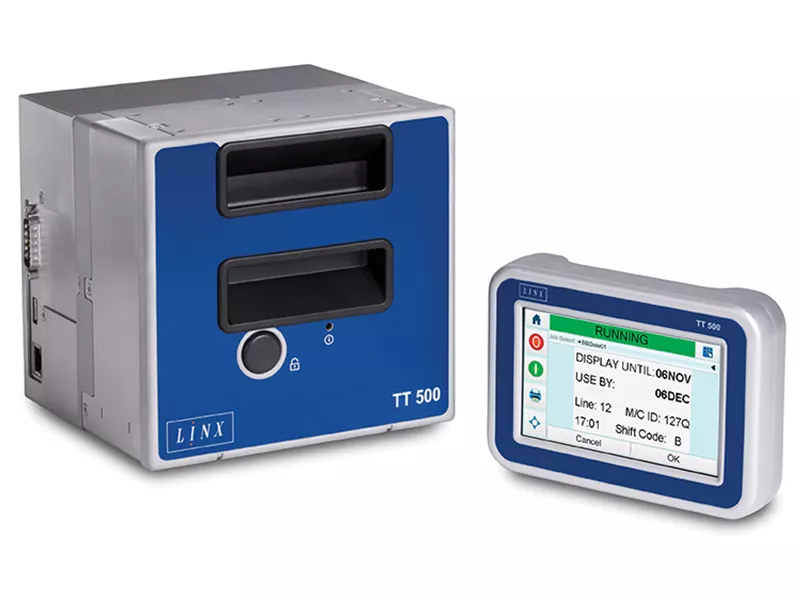

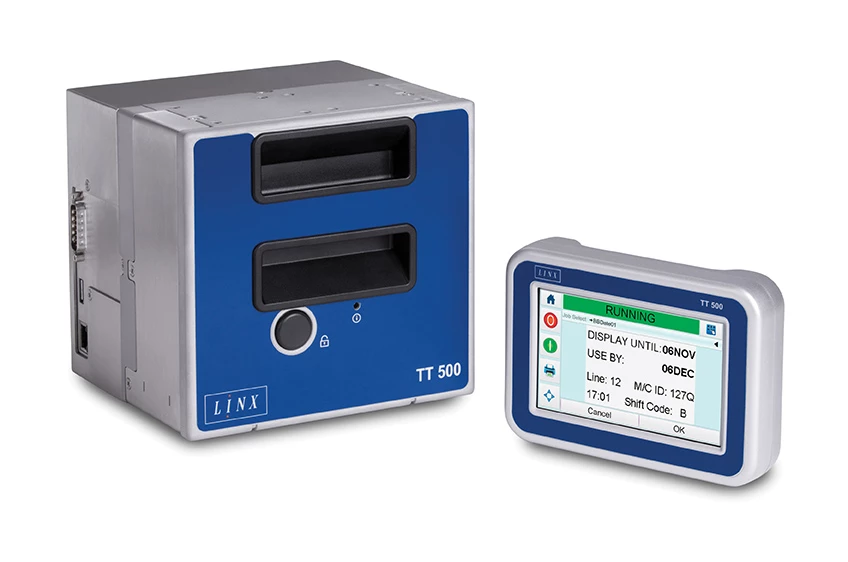

Linx TT 500
Flexible packaging and other flexible material printing at widths up to 32mm
The Linx TT 500 is a simple printer designed for printing onto flexible materials including bags, pouches, labels and flow wrap, ideal when coding areas up to 32mm x 100mm.
Low cost of ownership, increased uptime, easy to use.
Key benefits
- Operates without compressed air reducing installation and operating costs while maintaining consistent print quality
- Large range of ribbons to better meet your application and production line printing needs
- Optimised ribbon usage with bi-directional stepper motors delivering more prints per ribbon

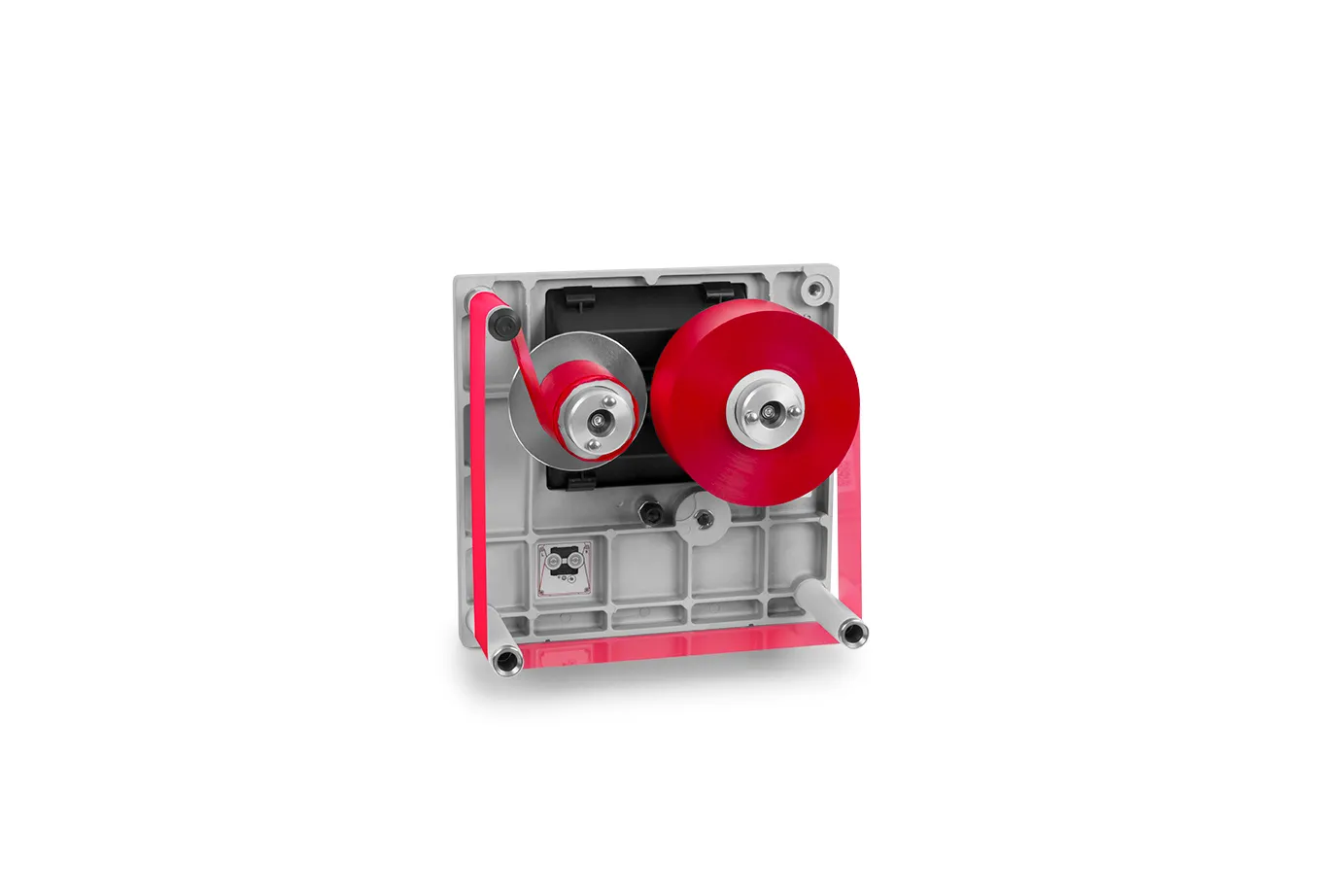

- Lightweight, simple, push button ribbon cassette system for quick and easy ribbon changes
- Optimal number of user maintainable parts that are easy to replace
- Easy to set and maintain print quality with electronic pressure control
- Simple cassette system minimises errors during ribbon replacements
- Easy to use colour touch screen – fewer errors and hassle-free operation
Ressources
Linx TT 500 Datasheet
Linx TT Series Video English
Linx TT Series Infographic
Technical Specifications
Printing Capability
- Ribbon widths:20mm to 33mm
- Print area – intermittent motion mode: up to 32mm (W) x 47mm (L)
- Print area – continuous motion mode: up to 32mm (W) x 100mm (L)
- Maximum throughput: 150 prints per minute
- Maximum ribbon length – 700m
- Print speed – intermittent motion mode: 50mm/sec to 300mm/sec
- Print speed – continuous motion mode: 40mm/sec to 500mm/sec
- Ribbons: Range of types, colours, lengths and widths
Programming Features
- Linx CLARiSOFT message design software
- Barcodes
- Fixed/variable text and numeric fields
- Auto incrementing/ decrementing text, counters and barcodes
- Basic shape drawing
- Flexible date/time formats
- Auto best before date calculation
- Formats for shift coding
- Multiple graphic formats
- …and more
Physical Characteristic
- Operates without compressed air
- Class leading lightened push button open/push to close, simplest ribbon threading cassette system
- Clutchless bi-directional ribbon drive
- 5.0” WVGA (800×480) touch screen graphic user interface
- Universal bracket systems for integrating printer into intermittent and continuous motion packaging machinery
