Details

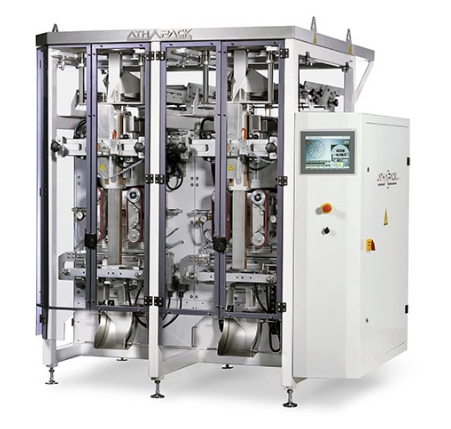

DUAL series are intermittent motion systems, the DUAL series reaches maximum speeds that can be reached using Servo-Motion technology. This series is designed for products need high speeds such as pasta, pastry and chips. Thanks to the modular design of DUAL (Twin) packaging machines, easy operation, minimum maintenance, Quick changeover and setup, low running cost, single operator, Doubles the production in same space as a single tube machine and finally the most attractive feature is ability of Packing same product in two different weighs at the same time. It can easily adapt to changes in the market with various accessories and apparatus.
General Features
-
Intermitant motion System
-
Twin tube design (Two Outputs)
-
Speed Up to 180 bags/minute
-
Doubles the production in same space as a single tube machine.
-
Ease of operation with single 12” industrial PC Man-machine interface
-
Reduced operating cost and minimal maintenance
-
Quick changeover and setup
-
Ability of Packing two different weighs at the same time
-
All surfaces in contact with the product are AISI 304 stainless steel
-
Nitrogen gas flushing system (option)
-
Air conditioning on the control cabinet (option)
-
Static Eliminator (option)
-
Printer application (option)
-
Vacuum application on drive belts (option)
-
Automatic Film changeover (option)
-
The parameters and settings are made easily from the 10” industrial PC
-
All functions of the machine are controlled by the Motion Controller
-
All main movements in the machine are carried out by independent Servo motors
-
Works with and without photocell
-
The sealings are provided by P.I.D Heat Control System
-
With film adding Unit, bobbin replacement is easy
-
With the Auto-Film Centering System, the film is always centred
-
Auto-Film Merkezleme Sistemi ile film sürekli eksende
-
With the Auto-Film unwinding System, the reel is continuously opened at the same tension.
-
When the film is finished, the machine is automatically stopped
-
Any error occurs, the machine is automatically stopped and the errors will be displayed on the screen
-
Packaging materials: Polypropylene, polyethylene, all laminated films, barrier film, water-soluble film
-
Types of bags: pillow bag, gusseted bag, flat bottom bag, edge scratch bag and string bags
-
Suitable for different types of filling systems: Volumetric & Auger filler, Multihead & Linear weighers and various liquid fillers
-
CE standard
Technical Detail
| DF260 Technical Data | |
| Features | DF260 |
| Mechanical Speed | 180 bpm |
| Package Length | Max. 360 mm |
| Package Width | Max. 250 mm |
| Coil Width | Мах. 400 mm |
| Coil Diameter | Мах. 400 mm |
| Power Consumption | 6 KW |
| Voltage | 380 V 3 Phase 50 Hz |
| Air Consumption | 300 l/min. |
| Air Pressure | Міп. 6 Bar |
| Dimensions | А = 1690 mm
B = 1935 mm C = 2045 mm |
