Rejection systemsSeveral types of rejection systems available to ensure the maximum level of certainty that defective products will be rejected: air-jet, cylinder ejectors. | |
Reject management systemsAll the rejected product bins are protected by a key, allowing only authorised personnel to access them. | |
Alarms notificationSeveral types of alarm notifications, both visual and audio. | |
Wind-prevention tunnelThe instrument can be equipped with high resistance guards, which protect from the elements and any contaminants. | |
Special conveyors01D3 dual line pharma is available with belt or slat conveyors. PRISMA INDUSTRIALE can help you find the most suitable solution to handle your product. | |
Quick-disassembly beltsA mechanical securing and release system that drastically reduces machine downtime, both during cleaning and in the event of belt replacement. | |
24-column panel printerAn on-board printer to easily print production data. | |
Open flap control deviceAn optional control that allows you to identify any defects in box construction. | |
Product program memory expansionThe settable product program limit can be exceeded by expanding the available memory and thereby further increasing the machine’s versatility. | |
USB and Ethernet interfaceinterfaces to export and communicate production data in real time can be implemented on all PRISMA models. | |
Feed-back functionAllows you to send a signal to the on-board dosing device to reduce mean error, thereby preventing waste due to incorrect dosages and their rejects. | |
FAT/SAT, IQ/OQ validationsWe are available to perform tests and issue the related documents |

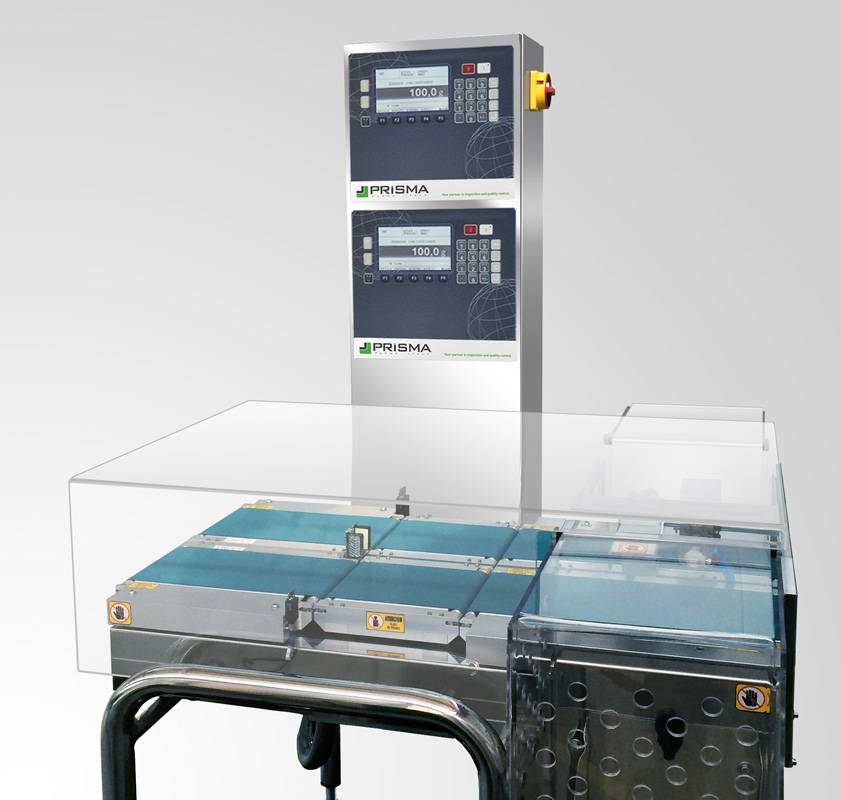

01D3 dual line pharma
Checkweigher for pharmaceutical products consisting of two separate lines, each with its own control panel, rejection system and rejection bin.
Conceptually speaking, they are two separate machines, side by side but completely independent in every respect: from setting the speed, capacity and tolerance, therefore simultaneously managing two products, to separate production reports per line; from the separate motorisations to the specific rejection systems.
In practice, putting this checkweigher on your line means having two fully accessorised 01D3 pharma machines with all the advantages of having to manage and service only one system, including price.
Maximum capacity of 600 g, accuracy from ± 0.1 g and production rate of 1000 ppm.
Made entirely of stainless steel, it has an IP54 degree of protection and single load cell weighing system.
