33mm ribbon width for basic batch code applications

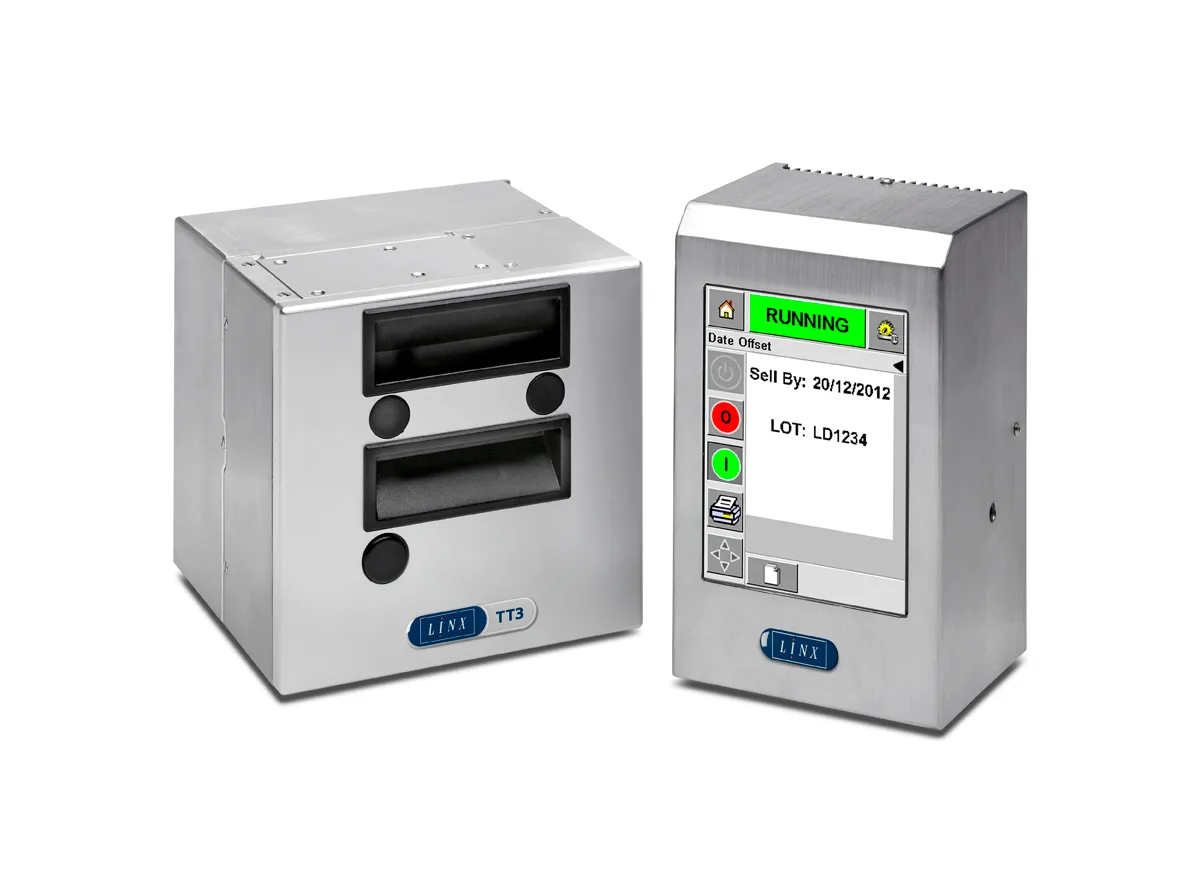

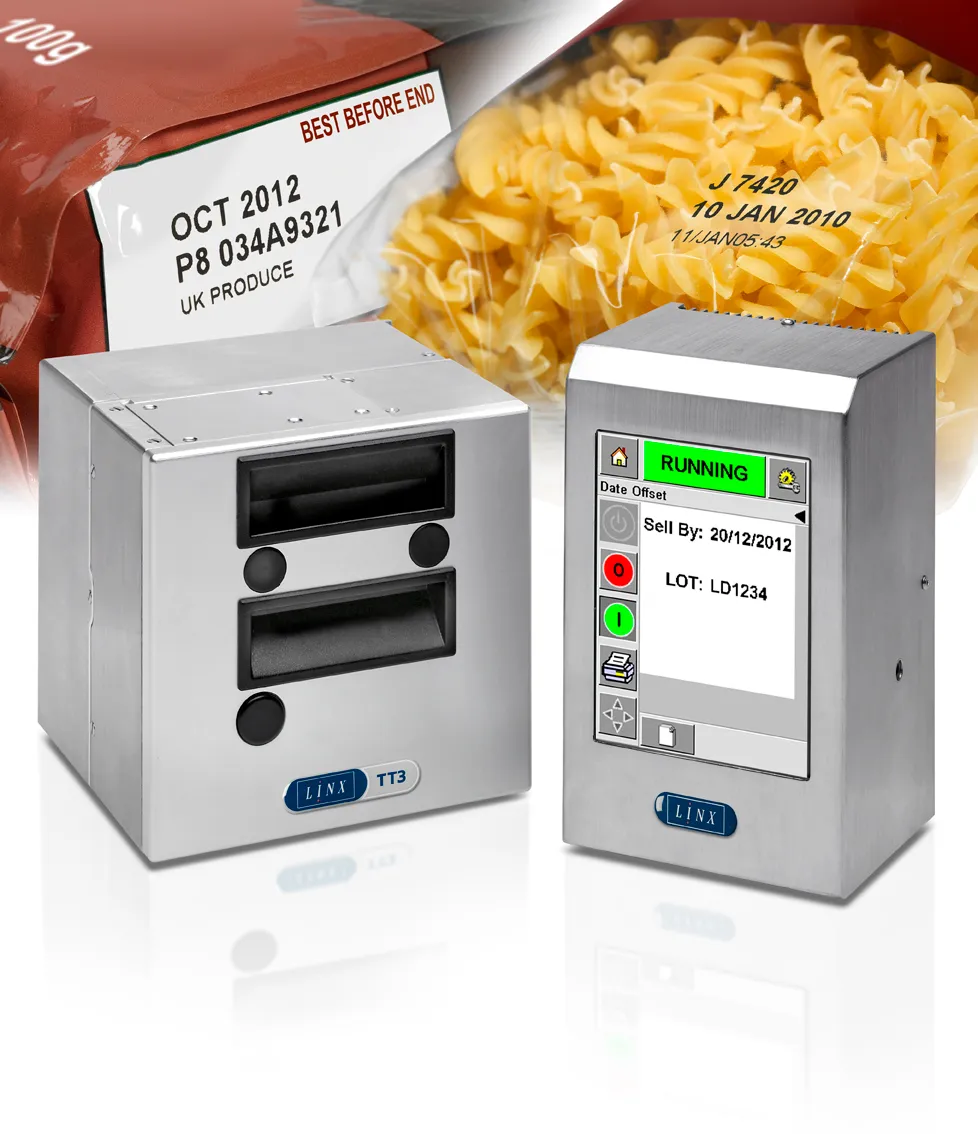

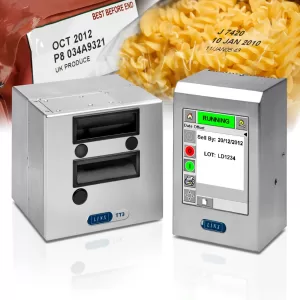

The Linx TT3 is a simple printer designed for simple date and batch coding onto flexible materials including bags, pouches and flow wrap, ideal when coding areas of 32mm x 30mm. Easy to use, maximum ribbon economy, minimum fuss.
Key benefits
- An efficient ribbon drive brings wastage to an absolute minimum
- Simple ribbon cassette for quick changeovers
- Easy to use colour touch screen – fewer errors and hassle-free operation
- Optimized ribbon economy for lowest running costs
- High resolution 300dpi printhead for optimum legibility of even the smallest characters
- Clutchless ribbon drive to minimize the risk of ribbon breaks
- Exceptional flexibility – switch between intermittent and continuous printing modes
- WYSIWYG interface for simple and error-free message creation
Technical Specifications
Printing Capabilities
- Ribbon width of 22mm or 33mm
- Message area – 32mm (w) x 30mm (l)
- Maximum ribbon length – 600m
- Print speed: intermittent motion mode – 50mm/sec to 200mm/sec
- Print speed: continuous motion mode – 40mm/sec to 500mm/sec
- Ribbon colors – black, metallic white (other colors on request)
Programming
- Coder supplied with a range of standard code templates
- CLARiSOFT for TT3 code design software
- Auto best before date calculations
- Flexible date/time formats
- Scaleable text including rotation, mirror and inverse printing
- WYSIWYG print preview
- 3 levels of password protection
Physical characteristics
- Clutchless bi-directional ribbon drive
- Full colour touch screen
- Standard bracket systems for integrating coder into intermittent and continuous motion packaging machinery
