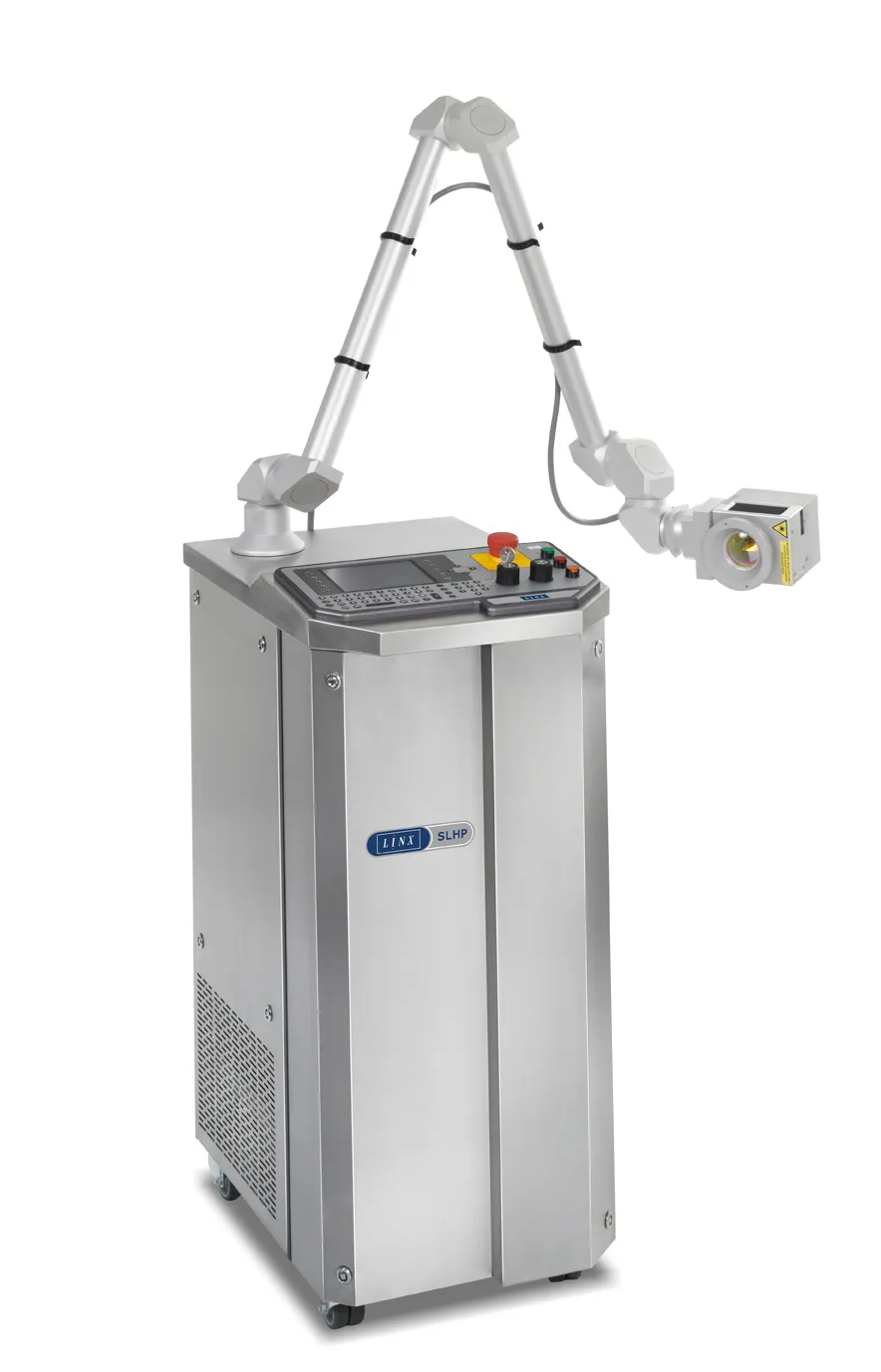

Linx SLHP

Key benefits

  • Graphics can be accurately reproduced with vector-generated codes
  • High power of the laser means a shorter dwell time on the product
  • Air-cooled – no factory air required
  • Large scan area for multiple lines of code/graphics
  • IP56 rating ensures reliable operation in harsh production environments
  • Internal air cooling system for increased efficiency and less maintenance
  • Air-cooled – no factory air or water required
  • Efficient use of the laser source prolongs the life of the laser tube
  • No ongoing consumable costs

 Ressources

SLHP Datasheet

 Technical Specifications

Marking Formats

  • High quality codes
  • Large area marking capability
  • Simple alphanumeric codes
  • Multi-line codes
  • GS1
  • Bar codes
  • 2D Data Matrix
  • Accurate reproduction of complex graphics, logos, symbols

Physical Characteristics

  • Laser – single sealed CO2
  • Average coding power – 120 watts

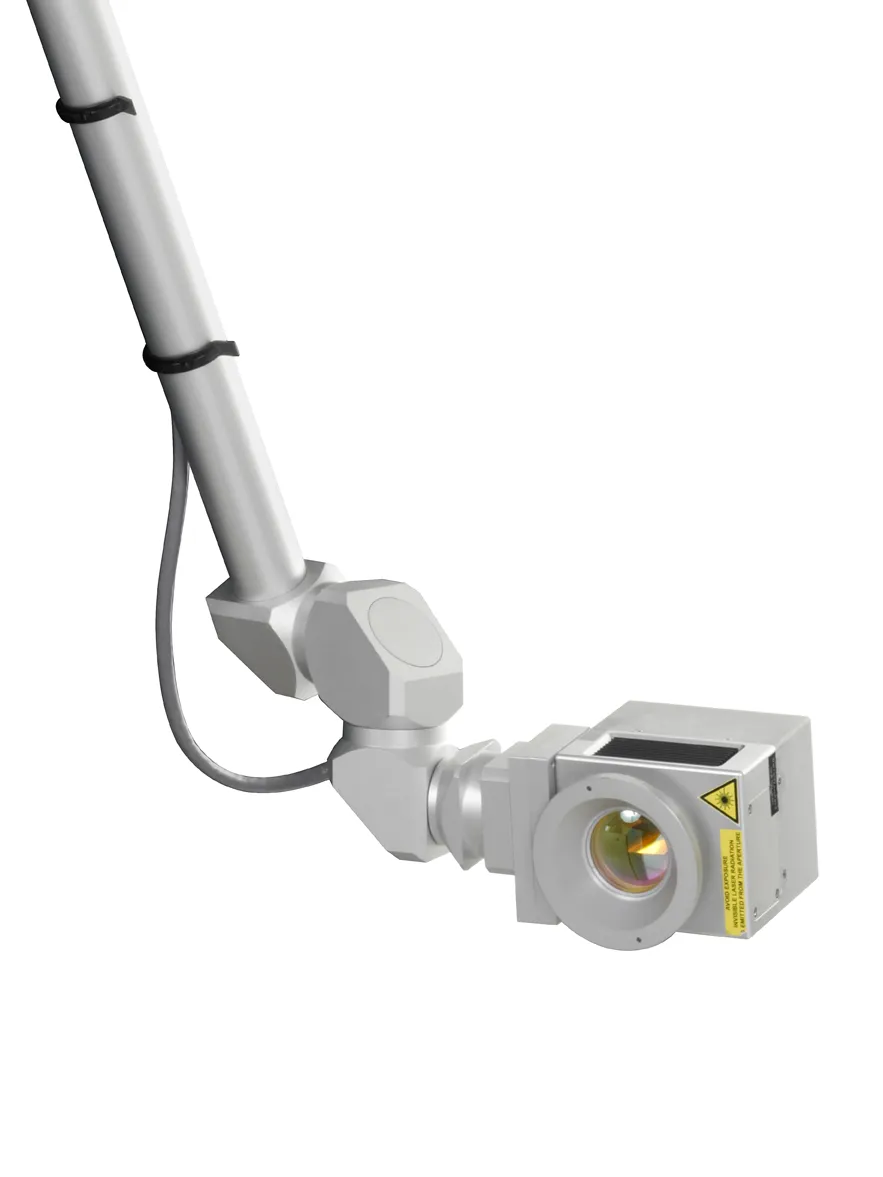

  • Beam delivery –  7 knuckle articulated arm for optimal integration
  • IP rating – IP56 marking head and supply unit
  • Cooling – Integral air cooling; water cooled option for high duty applications
  • Supply voltage – 200-240v 50/60 Hz Single or Bi-phase
  • Integral QWERTY keypad; remote keypad option

Applications

  • Static and ‘on the fly’ coding
  • High speed beverage lines on glass, plastic and labels
  • High speed and complex pharmaceutical coding
  • Anti-counterfeiting e.g automotive, high value perfumes/spirits, tobacco
  • Wide range of materials including rubber, glass, PET, PVC

Software

  • Comprehensive and versatile
  • Multiple EU display languages included
  • Time/date stamp
  • Incremental fields
  • Text orientation
  • 3 level password protection
  • 2 channel quad encoder input
  • Flash memory backup
  • RS232 interface
  • Windows® operating system

The post Linx SLHP appeared first on itec invention technology trading company شركه اختراع التكنولوجي للتجارة.

]]>

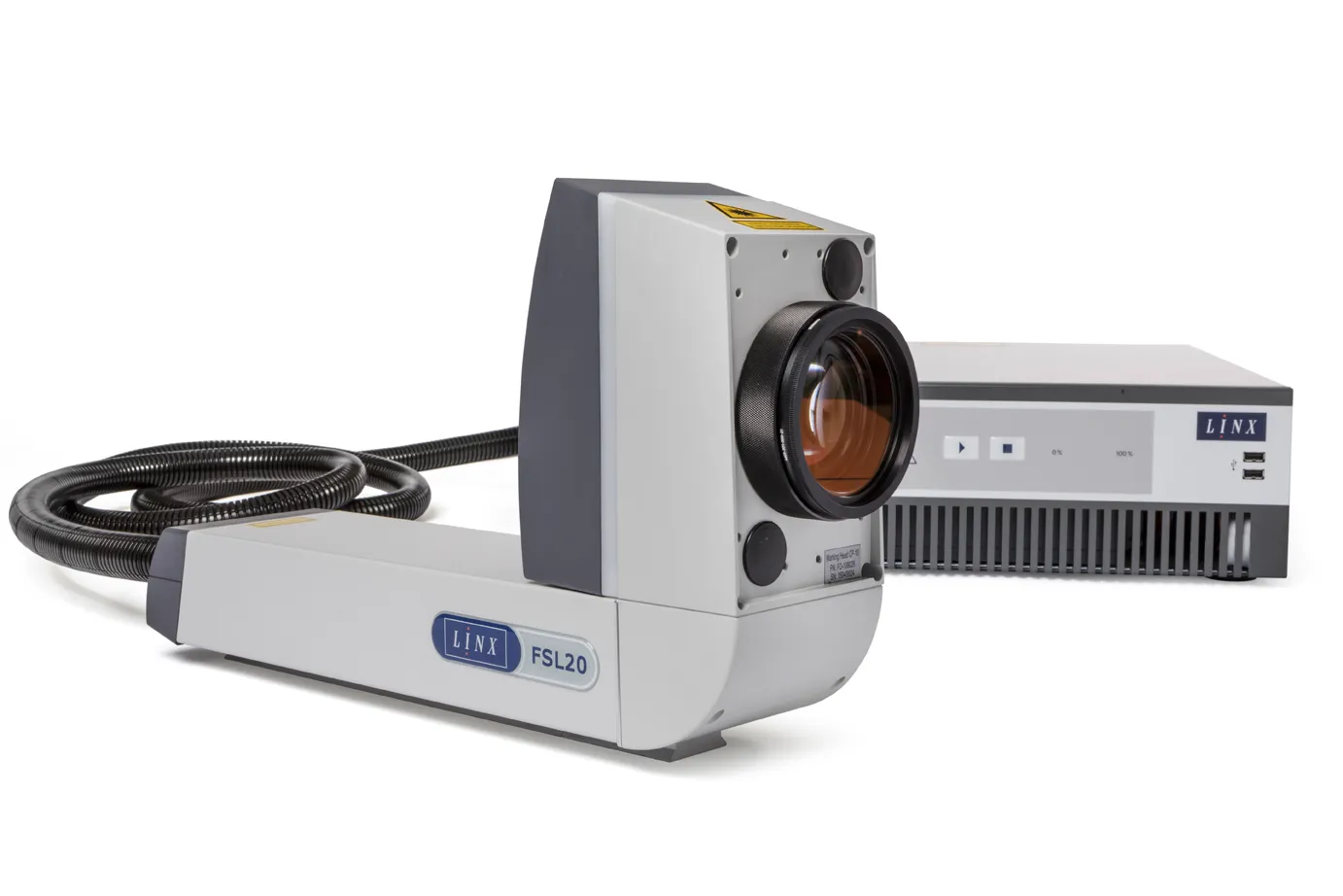

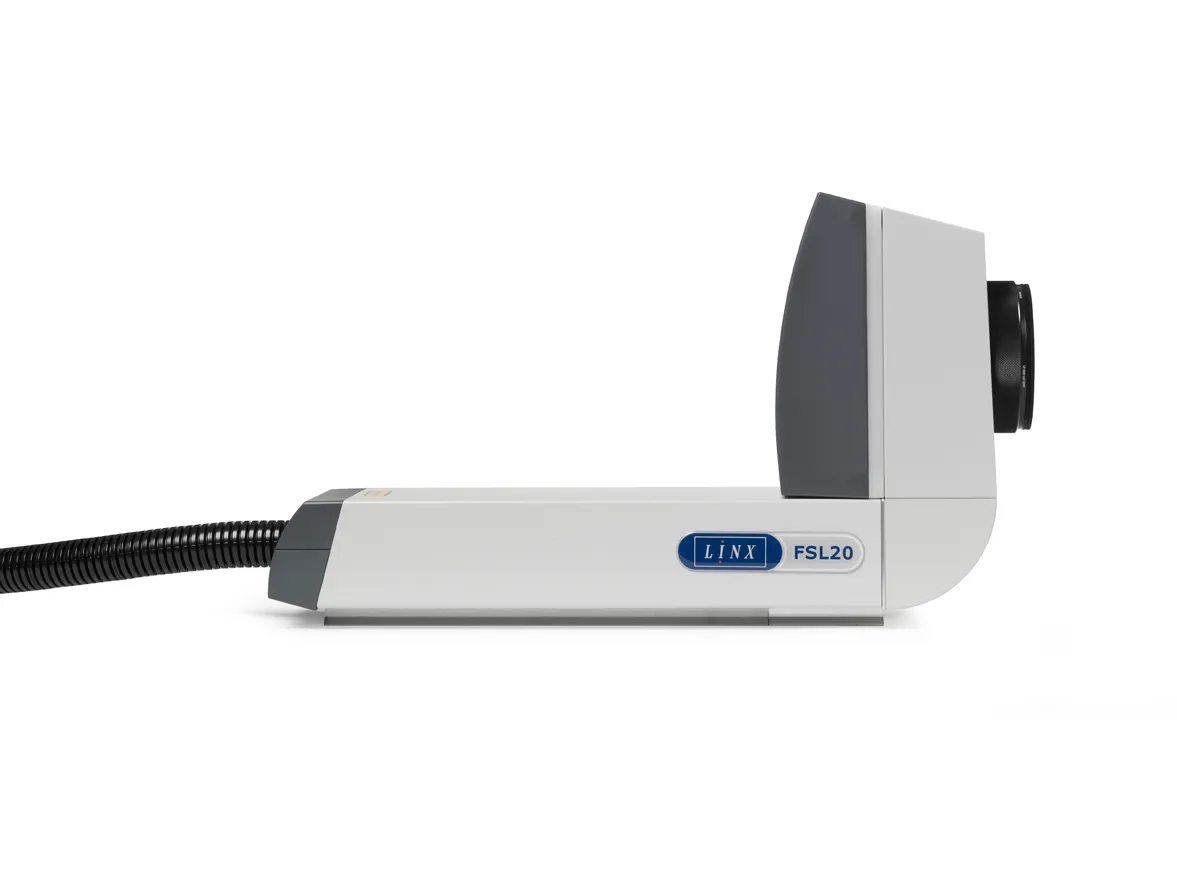

Linx Fibre Lasers https://itec-sa.com/shop/linx-fibre-lasers/ Sat, 02 Aug 2025 23:24:56 +0000 https://itec-sa.com/?post_type=product&p=7213 Linx FSL20 & FSL50 fibre lasers deliver a very fine spot size which creates excellent quality codes. They are ideal for marking very small components, or large amounts of information onto small areas.

The post Linx Fibre Lasers appeared first on itec invention technology trading company شركه اختراع التكنولوجي للتجارة.

]]>

Key benefits

  • Laser tube life of over 100,000 hours – less downtime
  • Fine spot size for high quality codes
  • Two beam orientation options allows coding in any direction
  • Choice of 4 lenses for codes tailored to your requirements
  • Compact marking head for easy integration into moving and static lines
  • Internal air cooling system for increased efficiency and less maintenance
  • Quick message creation reduces time spent on setup and changeovers
  • Extremely efficient use of the laser with no compromise on code quality or speed

 Ressources

FSL20 FSL50 Datasheet

 Technical Specifications

Marking Formats

  • Standard fonts (Windows® TrueType®/TTF; PostScript®/PFA, PFB; OpenType®/OTF) ·
  • Individual fonts such as high-speed or OCR ·
  • Machine-readable codes: Bar codes: BC25,BC25I, BC39, BC93, EAN 8, EAN 13, BC128, EAN 128,Postnet, SCC14, UPC_A, UPC_E, RSS14TR, RSS14ST, RSS14STO, RSSLIM, RSSEXP Data matrix 2D codes: ECCOOO, ECC050, ECC080, ECC100, ECC140, ECC200, ECC PLAIN, QR ·
  • Graphics/graphic components, logos, symbols, etc. (the most common file formats such as DXF, JPG,AI can be imported) ·
  • Linear, circular, angular text marking; rotation, reflection, expansion, compression of marking contents ·
  • Sequence & serial numbering; automatic date, layer, time coding, real-time clock; online coding of individual data (weight, contents, etc.)



Communication

  • Ethernet, TCP/IP and RS232, digital I/Os ·
  • Inputs for encoders and product detector triggers ·
  • I/Os for start, stop, external error, job select, trigger, trigger enable, encoder, system ready, ready to mark, marking, shutter closed, error, bad, good signals and machine/ operator interlocks

Performance

  • Line speed – 1 to 6,000 mm/s (typical). ·
  • No of lines of text – Only limited by character size and marking field ·
  • Character height – Up to marking field ·
  • Print rotation – 0- 360 degrees ·
  • Operation mode – pulsed (Q switch)

Physical Characteristics

    • Material – Painted sheet metal housing ·
    • Weight: marking unit/supply unit – 8kg / 19kg ·
    • Laser head – IP54 ·
    • Conduit length – 2.7m ·
    • Minimum bend radius of conduit – 90 mm ·
    • Head mounting options – 90-degree (standard) and straight-out (option) ·
    • Cooling system – Air cooled with automatic overheat detection ·
    • Supply voltage / frequency – Auto selection range 100 to 240 V / 50/60 Hz (auto range) ·
    • Maximum power consumption – 500 VA ·
    • Operating temperature range -10 – 40° C ambient ·
    • Humidity range – 10% to 90% relative humidity, non-condensing

The post Linx Fibre Lasers appeared first on itec invention technology trading company شركه اختراع التكنولوجي للتجارة.

]]>
Linx CSL60 https://itec-sa.com/shop/linx-csl60/ Sat, 02 Aug 2025 23:20:37 +0000 https://itec-sa.com/?post_type=product&p=7199 60W – Flexible solution for high-speed retail coding

Applications & Materials
Materials support incl. Glass, Rubber | For harsh environments | Barcodes | Batch coding | Data Matrix & QR codes | Up to 900m/min | Print unlimited lines of text

Key Benefits:

  • Ideal for beverage, automotive industries & more
  • Over 20,000 configurations to meet code requirements
  • Code up to 70,000 bottles per hour

The post Linx CSL60 appeared first on itec invention technology trading company شركه اختراع التكنولوجي للتجارة.

]]>

Key benefits

Easy to use
  • Easy message creation and management of printing parameters with the large colour LinxVision® Touch Screen, and LinxVision software
  • Easy line integration – detachable marking head with quick disconnect cables
  • Multiple beam delivery options allow for coding in any orientation
  • Reduce your coding errors and meet coding regulations with password controls that can restrict access to qualified personnel only

Meet production targets

  • A powerful, four-core processor allows printing of complex messages – including 2d barcodes, QR codes and logos – on fast lines with no compromise on code quality
  • Code up to 70,000 bottles per hour*
  • Reduce running costs and delays with 45,000* hour tube life – one of the longest on the market
  • Service intervals typically twice that of the industry standard
  • No expensive factory air for cooling
Print in more applications
  • High power 60 W laser tube for coding onto hard materials such as glass, rubber and HDPE
  • Over 20,000 different configurations to economically meet your coding requirements
  • Wide web applications for large area coding or multiple lines of products
  • Crisp, clear coding onto cold glass bottling lines, at high speed, with VisiCode®, a unique set of parameters
  • Flip, mirror or curve text – easily code onto difficult shapes
    *tube life and line speed are application dependent

CSL60 video



CSL60 Datasheet

VisiCode Datasheet

LinxVision Datasheet

Irish Distillers



 Technical Specifications

Printing capability

  • 60 W CO2 scribing laser coder
  • Line speed – code up to 2100 characters/second; 70,000 bottles/hour; 900m/min
  • Maximum code height – 601mm
  • Marking field size – up to 440 mm x 601 mm
  • Laser wavelength – 9.3 μm or 10.2 μm or 10.6 μm
  • Laser tube warranty – 2 years
  • Spot size – from 0.12 mm to 1.65 mm
  • Print rotation – up to 360°
  • Marking head rotation – up to 360°
  • Code options – Date, time, static text, variable text, serial numbers, shift codes, increment/decrement (batch count), 1D/2D barcodes, graphics and logos, Julian date, Custom date and time formats, 2D codes including DotCode.
  • IP rating – full system IP65 rated as option; IP54 as standard.
  • Air cooled for both IP54 and IP65 variants.

The post Linx CSL60 appeared first on itec invention technology trading company شركه اختراع التكنولوجي للتجارة.

]]>

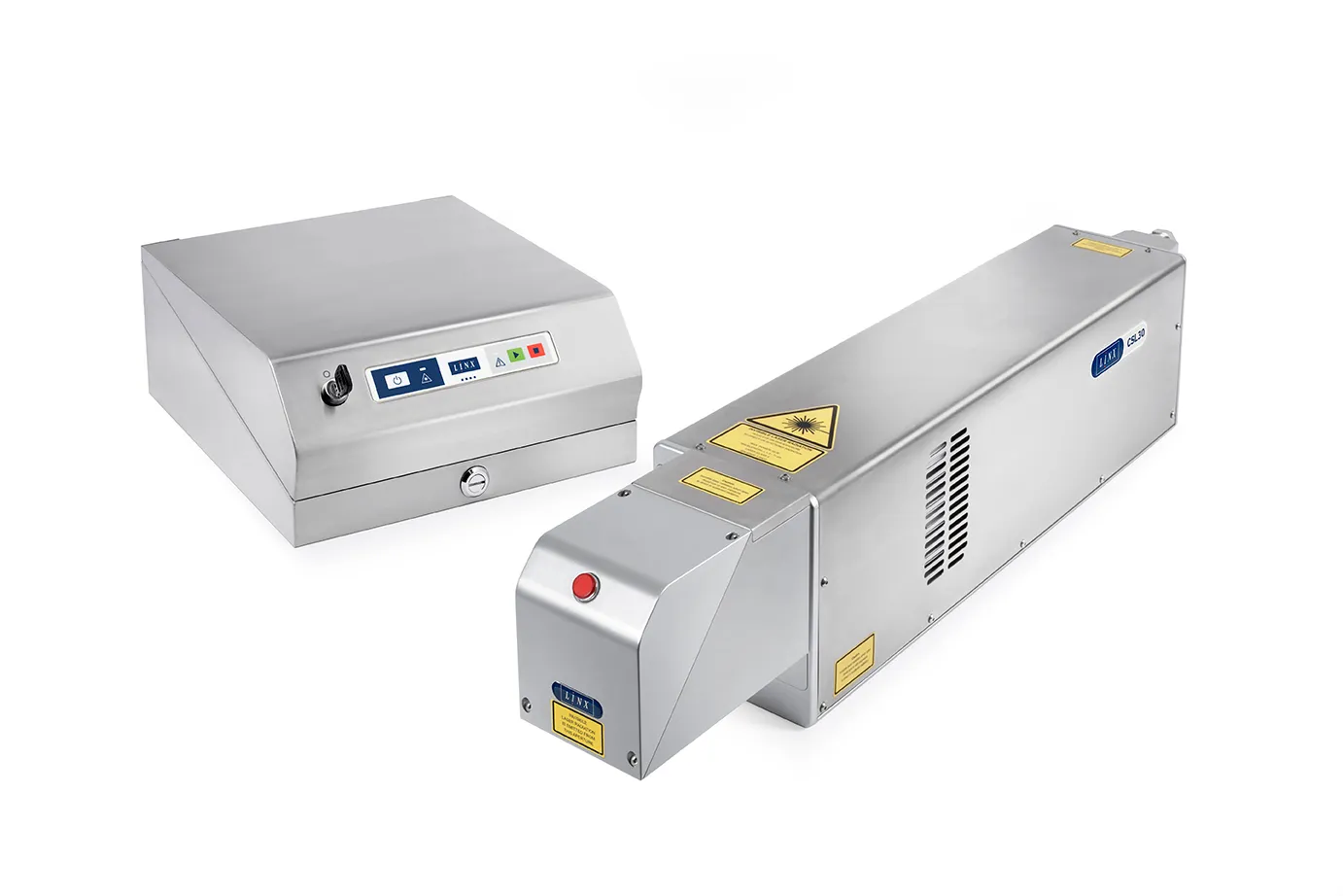

Linx CSL30 https://itec-sa.com/shop/linx-csl30/ Sat, 02 Aug 2025 23:06:39 +0000 https://itec-sa.com/?post_type=product&p=7182 30W – For high-speed marking of complex codes

Applications & Materials

Variety of materials incl. Glass, Rubber | Barcodes | Batch coding | Data Matrix, QR and dot codes | Up to 900 m/min | Print unlimited lines of text

Key Benefits:

  • Flexible solution, configurable to coding requirements
  • Quick to deploy and transfer to new lines
  • Multiple beams allow for coding at any orientation

CASE STUDY: Linx CSL30s provide clear quality codes for Bruichladdich Distillery Co.

The post Linx CSL30 appeared first on itec invention technology trading company شركه اختراع التكنولوجي للتجارة.

]]>

Key benefits

Easy to use

  • Easy line integration – detachable marking head with quick disconnect cables
  • Multiple beam delivery options allow for coding in any orientation
  • Easy message creation and management of printing parameters with the large colour LinxVision® Touch Screen, and LinxVision software
  • Reduce your coding errors and meet coding regulations with password controls that can restrict access to qualified personnel only

Meet production targets

  • Reduce running costs and delays with 45,000* hour tube life – one of the longest on the market
  • Service intervals typically twice that of the industry standard
  • A powerful, four-core processor allows printing of complex messages – including 2d barcodes, QR codes and logos – on fast lines with no compromise on code quality
  • No expensive factory air for cooling



Print in more applications

  • Crisp, clear coding on glass, even at high line speeds, with VisiCode®, a unique set of parameters
  • Flip, mirror or curve text – easily code onto difficult shapes
  • Over 20,000 different configurations to economically meet your coding requirements
  • Wide web applications for large area coding or multiple lines of products
    *tube life is application dependent

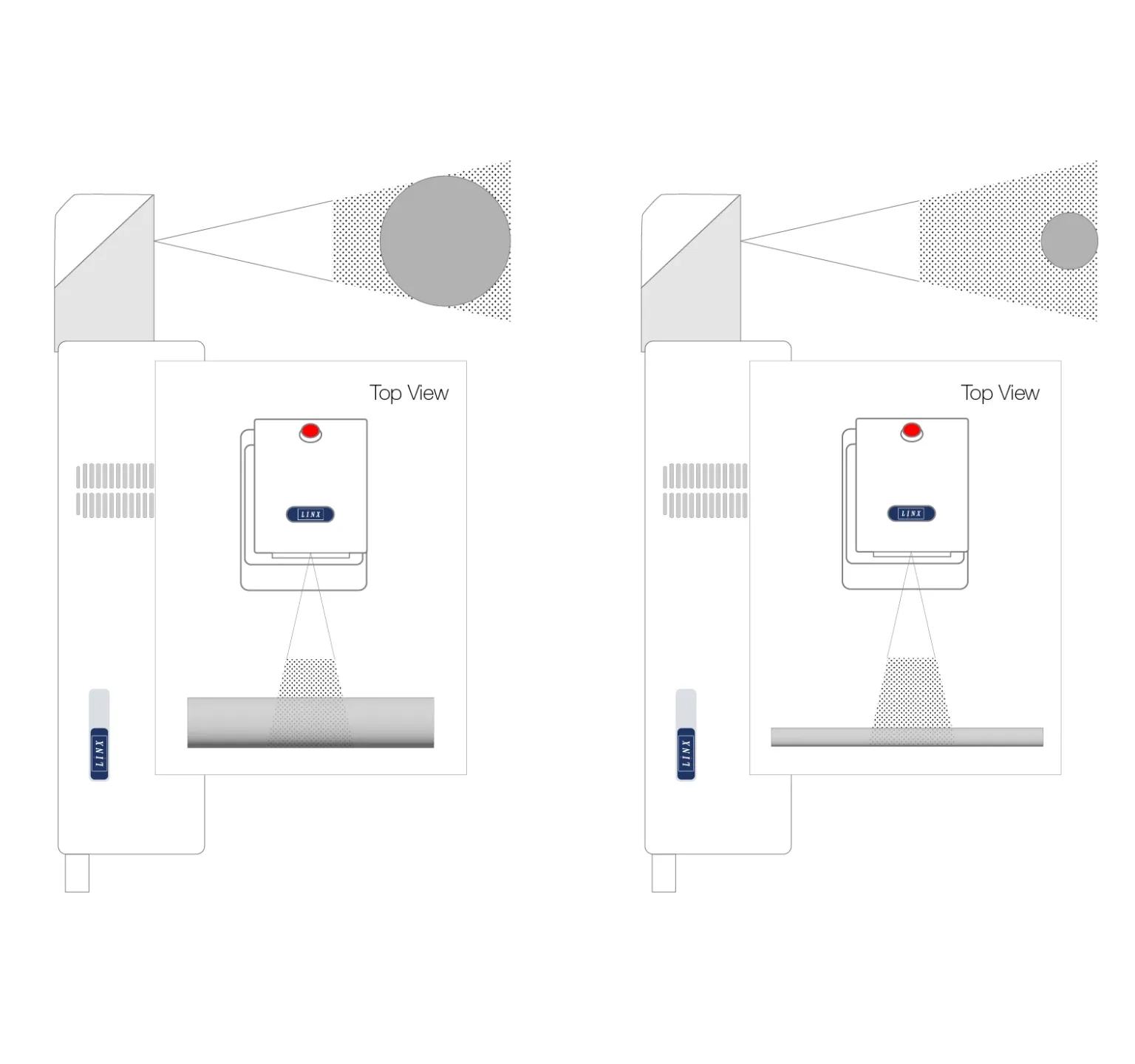

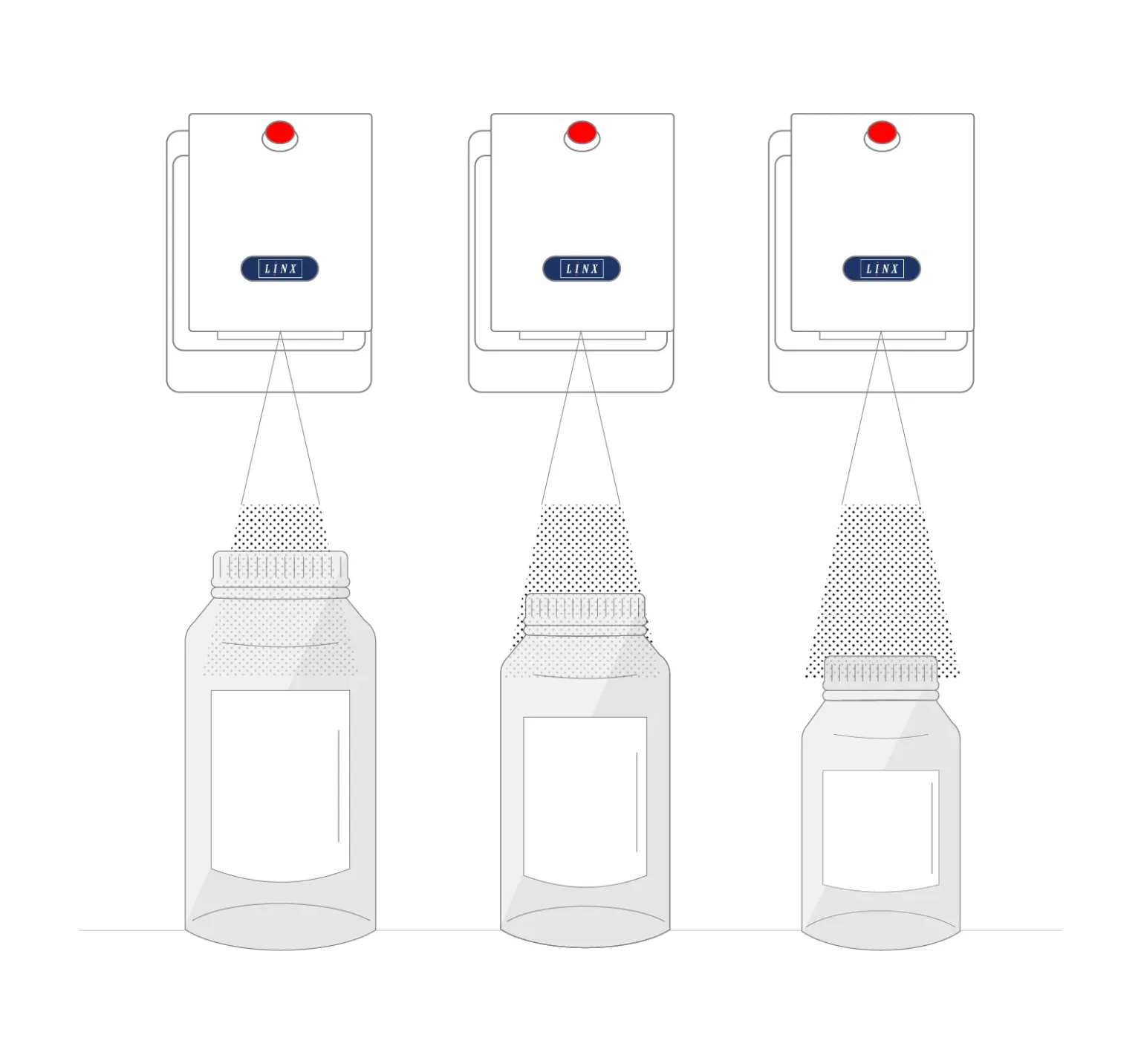

Simplified focus technology

The adjustable focus laser marking head with integrated simplified focus technology has been designed for lines with frequent product changeovers. The simplified focus technology allows the laser to quickly adjust the laser working distance and focus, meaning there is no need to move the laser or adjust it for different height or width products. You can mark various sized products without laser adjustment, reducing changeover time and eliminating errors.

Simplified focus technology

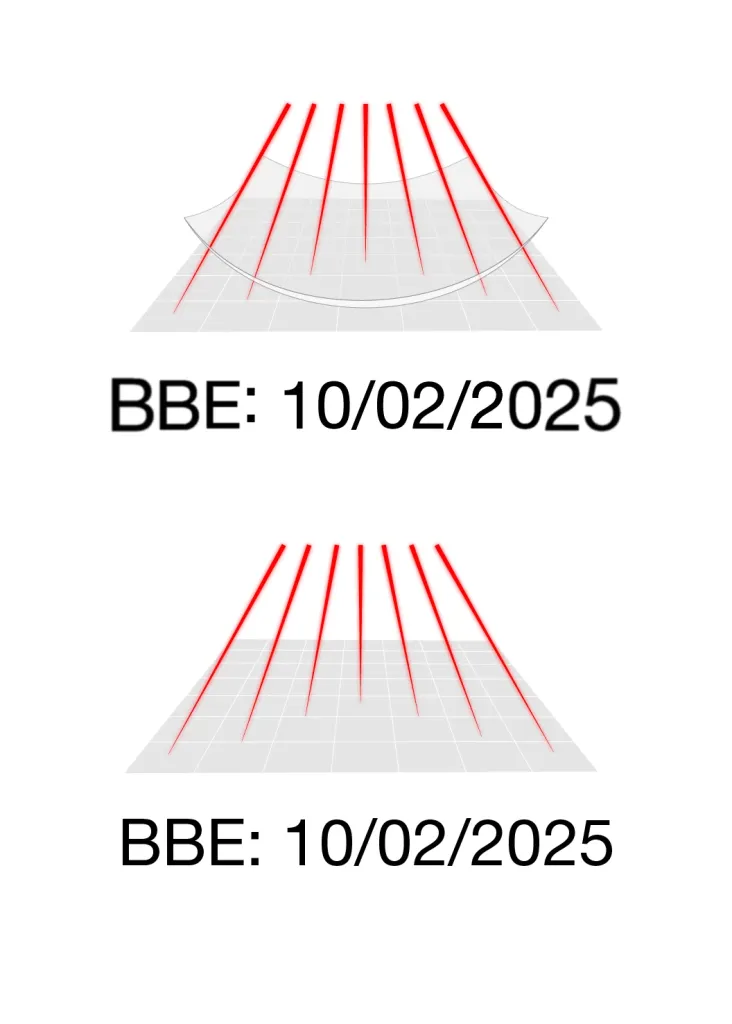

Flat field correction
Constant code quality across the whole marking area.

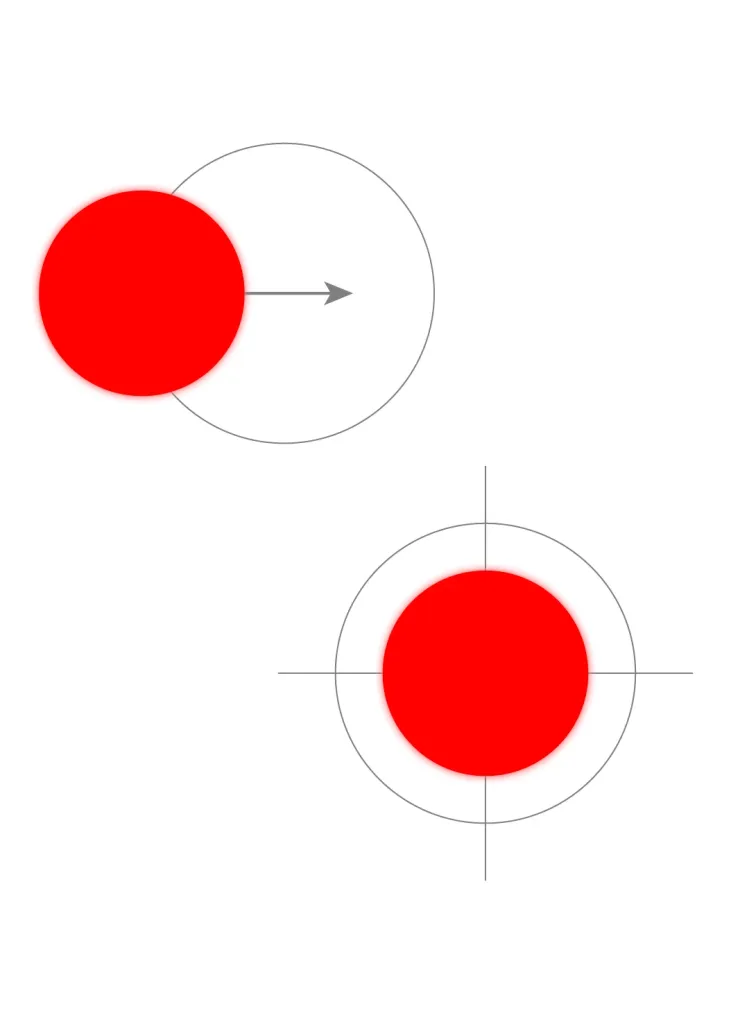

Built-in focus finder
Simplifies the marking distance setting accuracy.

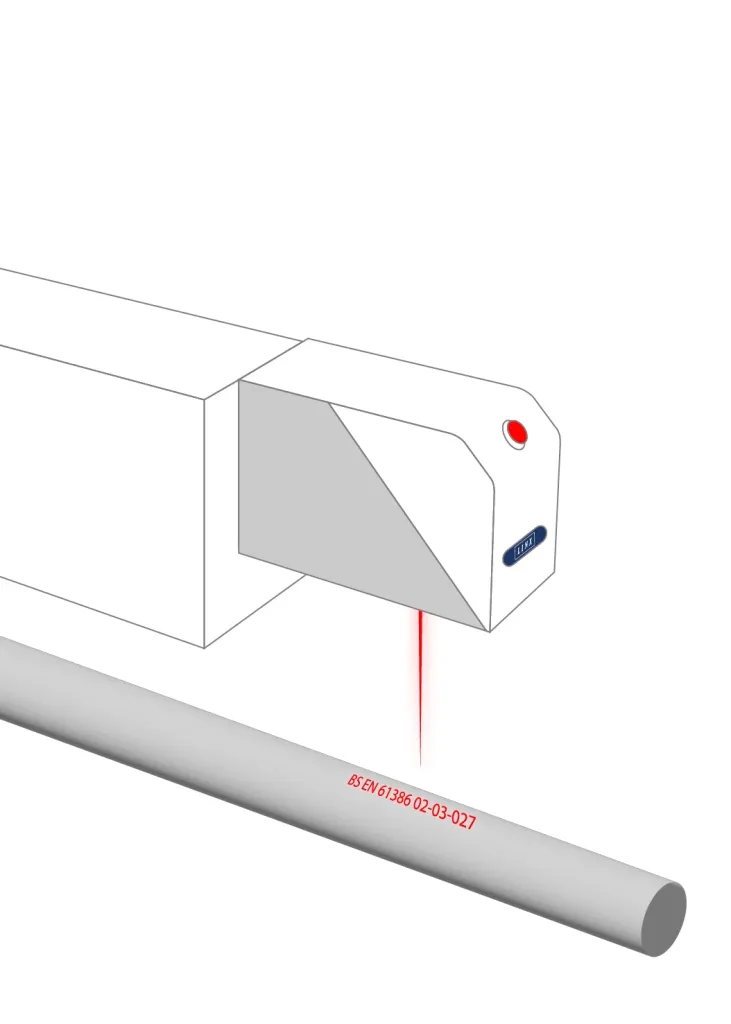

Built-in pilot laser
Ensures products are marked in the right place.

Optional WiFi access box
Optional WiFi access box provides WiFi connectivity where standard wired connections are not available

 Ressources

CSL30 Datasheet

Linx CSL30 coding onto card boxes

VisiCode Datasheet

LinxVision Datasheet

Irish Distillers





 Technical Specifications

Coding and marking capability

  • CO2 scribing laser coder
  • Line speed – up to 900 m/min (code and substrate dependent)
  • Maximum laser output power at lens – 30 W
  • Lens and head options (range):
  • Spot Size 0.12 mm – 1.6 mm
  • Marking Field 29 mm x 36 mm to 440 mm x 601 mm (wide web application)
  • Mark distance 67 mm – 576 mm
  • Number of lines of text – only limited by character size and marking field size
  • Character height – up to marking field size
  • Print rotation – 0-360°
  • Marking head rotation – 0-360°
  • Code options: date, time, static text, variable text, serial numbers, alphanumeric, shift codes, increment/decrement (batch count), ID Matrix 2D codes, barcodes, QR codes, graphics and logos, Julian dates, custom date and time formats
  • Laser tube wavelengths – 10.6 µm, 9.3 µm, or 10.2 µm
  • Marking head options – 4 marking heads available as standard
  • Versatile Beam delivery options for easy integration into your production line:
  • Down (90°) or Straight (0°) Shooter
  • 360° Beam Extension Unit (BEU)
  • Variable length Beam Turning Unit (BTU)
  • IP rating – IP54 as standard, IP65 option
  • Air cooled – not factory air
  • Large volume gas tube can last in excess of 45,000* hours
  • Laser tube warranty – 2 years
  • *Tube life may vary according to application.

The post Linx CSL30 appeared first on itec invention technology trading company شركه اختراع التكنولوجي للتجارة.

]]>
Linx CSL Range Laser Marking Machines | Laser Coding | Traceability Marking nonadult

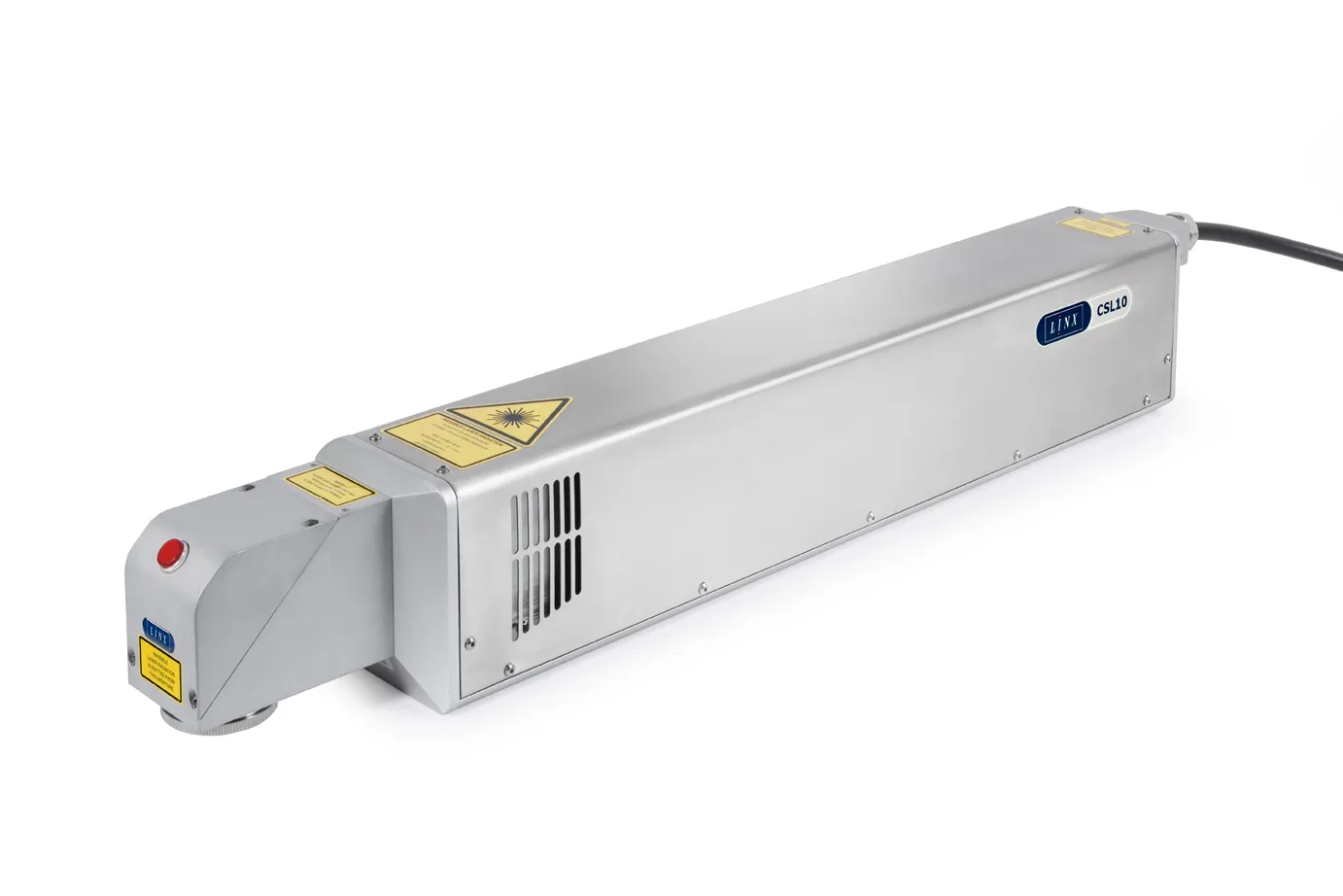

Linx CSL10 https://itec-sa.com/shop/linx-csl10/ Sat, 02 Aug 2025 23:05:18 +0000 https://itec-sa.com/?post_type=product&p=7168 10W – Economical yet versatile, with easy installation

The post Linx CSL10 appeared first on itec invention technology trading company شركه اختراع التكنولوجي للتجارة.

]]>

Key benefits

Easy to use
  • Easy message creation and management of printing parameters with the large colour LinxVision® Touch Screen, and LinxVision software
  • Reduce your coding errors and meet coding regulations with password controls that can restrict access to qualified personnel only
  • Easy line integration – detachable marking head with quick disconnect cables
  • Multiple beam delivery options allow for coding in any orientation
Meet production targets
  • A powerful, four-core processor allows printing of complex messages – including 2d barcodes, QR codes and logos – on fast lines with no compromise on code quality
  • Reduce running costs and delays with 45,000* hour tube life – one of the longest on the market
  • Service intervals typically twice that of the industry standard
  • No expensive factory air for cooling
Print in more applications
  • Over 20,000 different configurations to economically meet your coding requirements
  • Wide web applications for large area coding or multiple lines of products
  • Crisp, clear coding on glass, even at high line speeds, with VisiCode®, a unique set of parameters
  • Flip, mirror or curve text – easily code onto difficult shapes
    *tube life is application dependent

 Ressources

CSL10 Datasheet

VisiCode Datasheet

VisiCode Datasheet

Understanding Laser Marking Technologies White Paper



Printing capability

  • CO2 scribing laser coder
  • Line speed – up to 900 m/min (code and substrate dependent)
  • Maximum laser output power at lens – 10W
  • Lens and head options (range):
  • Spot Size 0.12 mm – 1.12 mm
  • Marking Field 29 mm x 36 mm – 294 mm x 406 mm
  • Mark distance 385 mm
  • Number of lines of text – only limited by character size and marking field size
  • Character height – up to marking field size
  • Print rotation – 0-360°
  • Marking head rotation – 0-360°
  • Code options: date, time, static text, variable text, serial numbers, alphanumeric, shift codes, increment/decrement (batch count), ID Matrix 2D codes, barcodes, QR codes, graphics and logos, Julian dates, custom date and time formats
  • Laser tube wavelengths – 10.6 µm or 9.3 µm
  • Marking head options – 3 head options available as standard
  • Versatile Beam delivery options for easy integration into your production line:
  • Down (90°) or Straight (0°) Shooter
  • 360° Beam Extension Unit (BEU)
  • Variable length Beam Turning Unit (BTU)
  • IP rating – IP54 as standard, IP65 option
  • Air cooled – not factory air
  • Large volume gas tube can last in excess of 45,000* hours
  • Laser tube warranty – 2 years
  • *Tube life may vary according to application.

The post Linx CSL10 appeared first on itec invention technology trading company شركه اختراع التكنولوجي للتجارة.

]]>

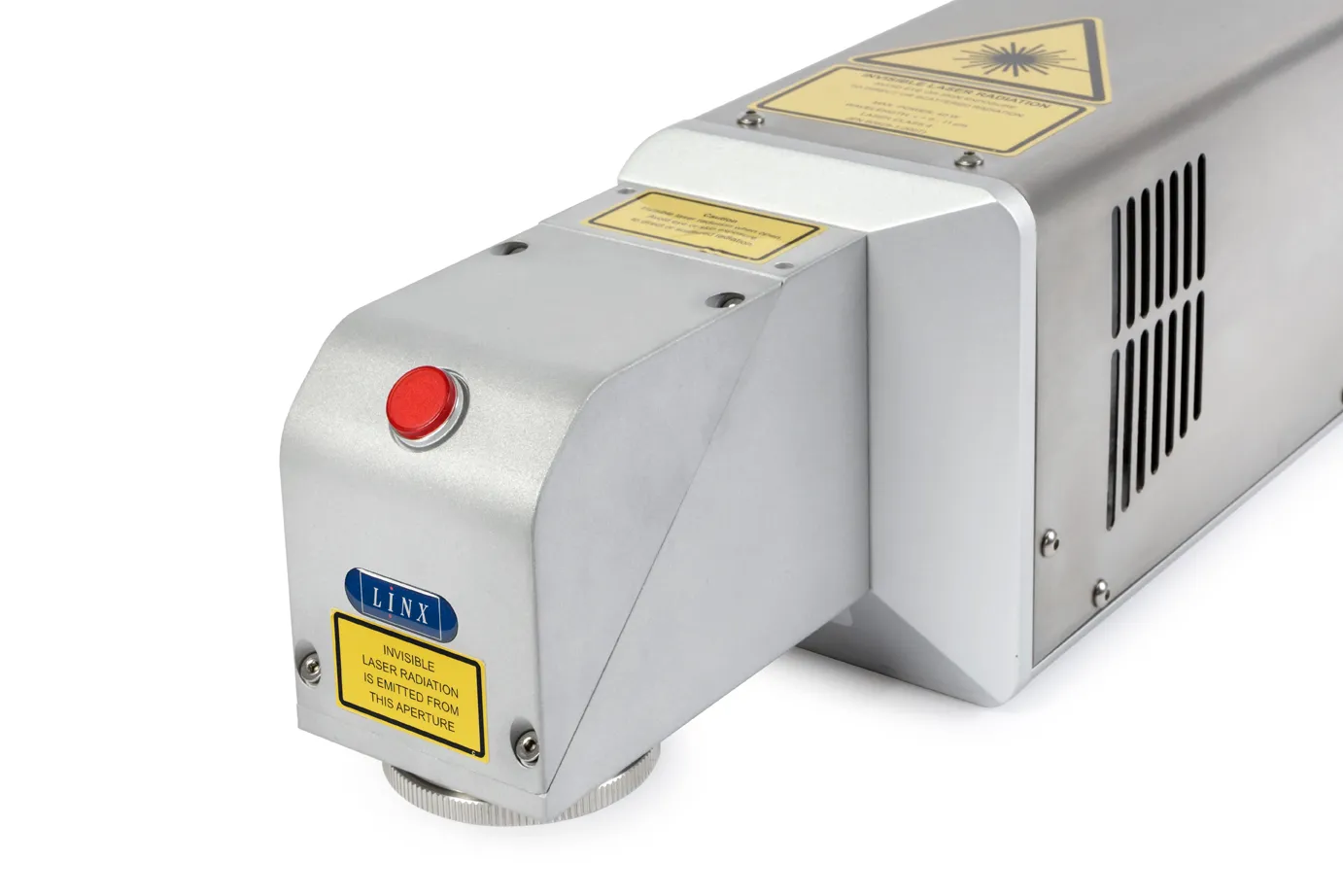

Linx SL3 https://itec-sa.com/shop/linx-sl3/ Sat, 02 Aug 2025 22:58:53 +0000 https://itec-sa.com/?post_type=product&p=7149 Applications & Materials
Broad materials support incl. Glass | Barcodes | Batch coding | Data Matrix & QR codes | Up to 360 m/min | Print unlimited lines of text

Key Benefits:
Robust, affordable, simple to install and operate.  This 30W CO2 laser coder is suitable for coding onto a wide range of products in a variety of demanding manufacturing environments.

The post Linx SL3 appeared first on itec invention technology trading company شركه اختراع التكنولوجي للتجارة.

]]>

Key benefits

Affordable
  • Compact, complete laser coder in a single unit that meets your coding needs at an affordable price
  • Operates without any consumables to minimise your running costs.
  • Flexible user interface options to control your laser.
Robust
  • IP54 stainless steel and anodised aluminium enclosure to withstand your manufacturing environment.
  • Established and proven laser tube and marking head technology provide reliability and confidence.
  • Operates without interconnections improving laser reliability through eliminating possibilities of interconnection failure or damage.
Simple
  • Multiple mounting positions and orientations support simple and compact installations.
  • Single unit installation reduces production line space usage and installation time.
  • Easy and minimum maintenance increases production time and reduces running costs.

 Ressources

SL3 Datasheet

SL3 Infographic

SL3 Video

 Key features

Speed: This simple and robust, CO2 30W laser coder has the ability to code up to a maximum marking speed of 360 meters per minute, which will cover a wide range of production lines.

Materials: The majority of materials can be effectively marked with a laser coder, including glass, metal, plastic and paper/card.

Rating: The IP54 rating of the stainless steel and anodised aluminium enclosure makes the unit secure from water splashes from any angle.

Warranty: With its two-year laser tube warranty, the coder ensures optimised production output and reliability, whilst reducing total cost of ownership.

Consumables: With no consumable the total cost of ownership is reduced.

Connections: The laser coder operates without interconnections, so the risk of accidental damage to the cables by twisting or chemical reaction is eliminated.

Target industries: the SL3 laser coder operates in a wide range of production environments but its abilities are especially suited to the beveragepackaging materialshome and personal care, and OEM installations.

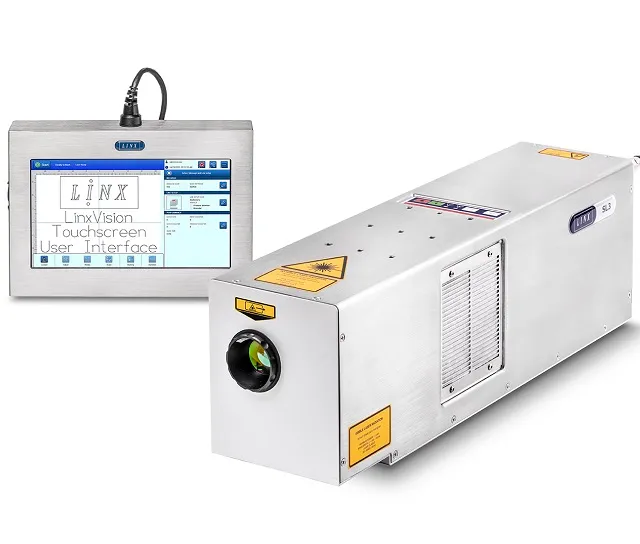

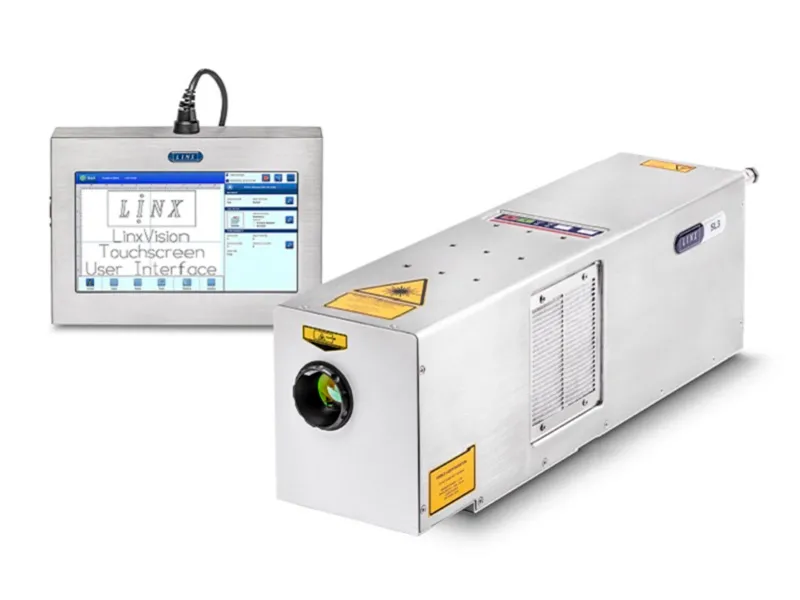

Software: Using the latest LinxVision® Software the SL3 laser coder provides easy access operator toolbar with a range of fonts, options and operating languages.



Installation: Weighing in at 21kg, the single unit integrates easily onto production lines and systems making it simple to install. The space required to house the coder, together with the installation time needed, are minimised, meaning less upheaval for already pressed production schedules.  Its multiple mounting positions and orientations, together with flexible user interface options including a choice of operating languages and password protection levels, gives total control of the laser.



Technical Specifications

  • CO2 scribing laser coder
  • Line speed – up to 360 m/min (code and substrate dependent)
  • Maximum laser output power at lens – 30W
  • Maximum marking speed [2mm characters/s]: 1300 m/min *
  • Marking ellipse [mm]: 51 x 80; 76 x 120; 102 x 160
  • Marking distance [mm]: 92; 141; 190
  • Number of lines of text – only limited by character size and marking field size
  • Character height – up to marking field size
  • Print rotation – 0-360°
  • Head mounting options: down (90°) or straight (0°)
  • Pilot Laser: available as standard
  • Focus Finder: available as standard
  • Mounting: On 3 sides of laser
  • Code options: Date, time, static text, variable text, serial numbers, shift codes, increment/decrement (batch count), 1D/2D barcodes, graphics and logos, Julian date, Custom date and time formats, 2D codes including DotCode
  • Laser tube wavelengths – 10.6 µm, 10.2 µm or 9.3 µm
  • IP rating – IP54 as standard
  • Air cooled – not factory air
  • Laser tube warranty – 2 years

The post Linx SL3 appeared first on itec invention technology trading company شركه اختراع التكنولوجي للتجارة.

]]>
Linx SL3 Laser Coder | Affordable | Robust | Simple | Laser Marking Machine nonadult
Linx UVG5 https://itec-sa.com/shop/linx-uvg5/ Sat, 02 Aug 2025 22:50:54 +0000 https://itec-sa.com/?post_type=product&p=7131 Applications & Materials
Broad range of materials including delicate mono-recyclable films and difficult to mark rigid plastics | 2D Data Matrix | QR | GS1 | Batch coding | Up to 2000 characters/second

Key Benefits:
High performance, easy integration and user-friendly innovation for fast, consistent product marking in demanding applications.

The post Linx UVG5 appeared first on itec invention technology trading company شركه اختراع التكنولوجي للتجارة.

]]>

High performance, easy integration and user-friendly innovation

Performance

  • Increased product throughput in a shorter time and line utilisation cost savings with marking up to 2000 characters/second
  • Reduced risk of damage to packaging as the UV laser creates minimal thermal stress on substrates compared to CO2 and Fibre marking
  • Highly visible and highly readable traceability codes delivered by smoother-edged codes with higher contrast

Integration and Setup

  • Built-in integrated Focus Shift means quick product changeovers with no mechanical adjustments to the production line for different size products
  • Easy integration into existing production lines, even in difficult or space restricted areas with the flexibility of the laser extension and turning units

Easy to Use

  • User-friendly LinxVision user interface allows mistake-free operator interaction
  • Built-in Pilot Laser eliminates costly product waste by ensuring products are marked in the right place
  • Operator accuracy and simplified marking distance setup with the

 UV Laser marking

UV lasers are different to other marking lasers such as CO2 and fibre. UV uses high-energy photons to break chemical bonds in materials, a process known as ‘cold processing’, which minimises thermal damage to surrounding areas.

By minimising thermal stress, UV laser marking ensures substrate integrity and reduces the risk of damage, making it an ideal choice for marking sensitive materials where traditional CO2 and fibre lasers may cause undesirable effects

Applications

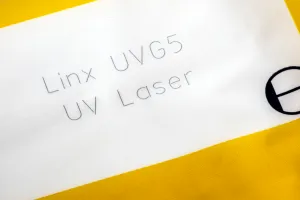

UV lasers are an ideal coding solution for a diverse range of materials including delicate mono-recyclable films, glass and difficult to mark rigid plastics such as HDPE, LDPE and PP, whilst maintaining the integrity of the product.

Capable of marking human-readable text and logos as well as machine-readable codes such as 2D Data Matrix, QR including GS1, the UVG5 delivers consistent code quality to support traceability requirements.

Wire and Cable

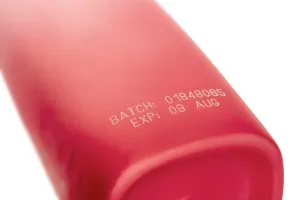

Personal Care

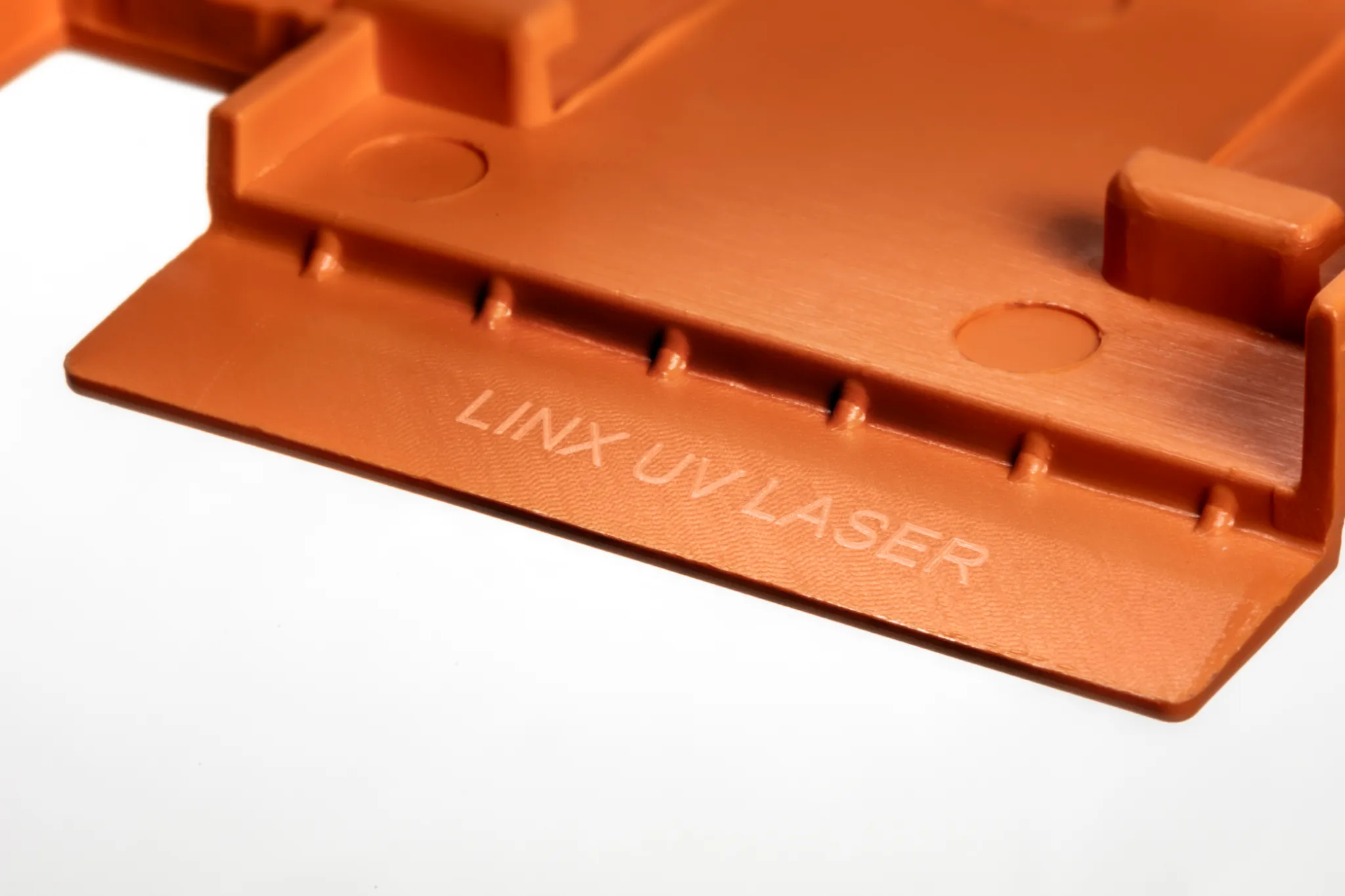

Extrusion

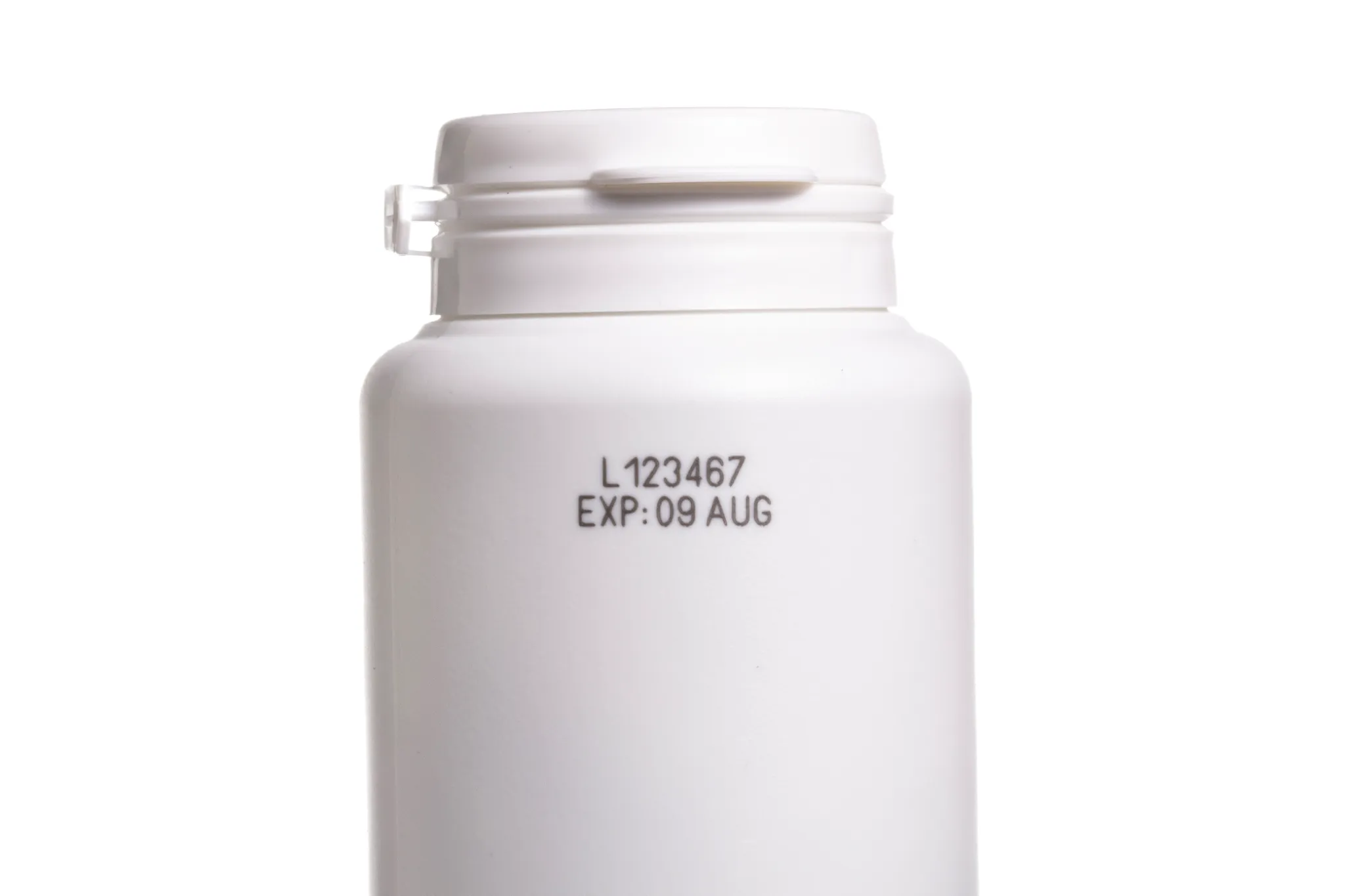

Nutraceuticals

Wire and Cable

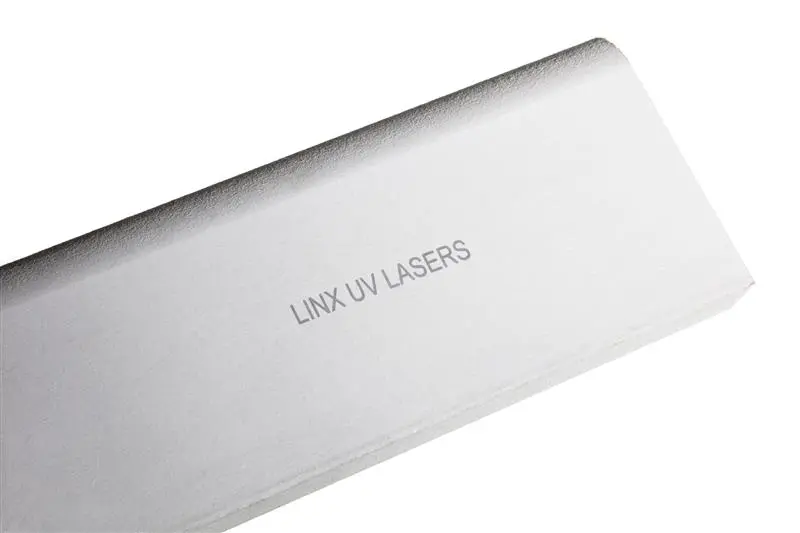

Construction

Perfume

Pet Food

 Ressources

UVG5 Datasheet

Technical Specifications

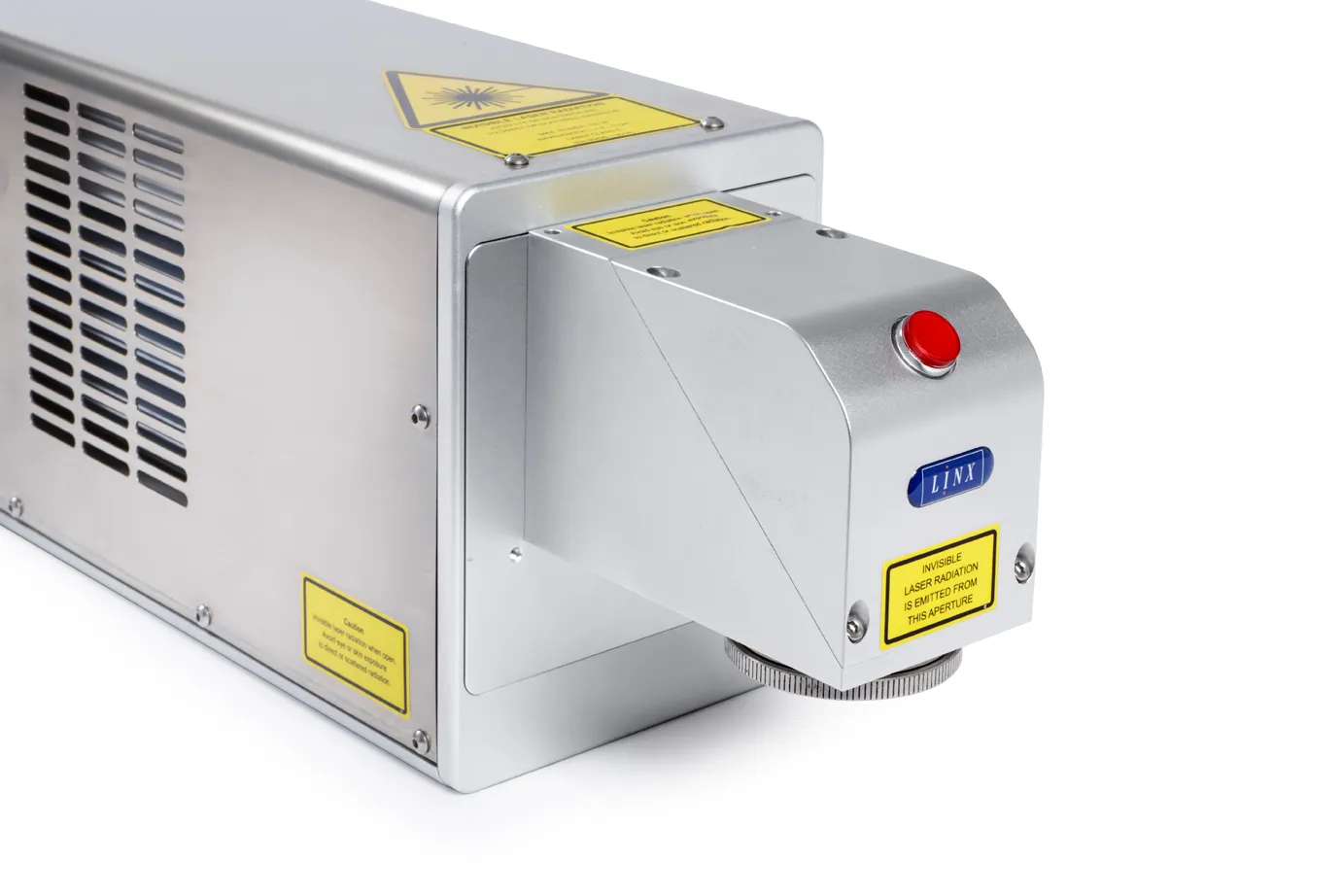

UV laser coder

Maximum laser output: 4W

Laser tube wavelengths: 355 nm

Line speed:  up to 600 m/min (application dependent)

Maximum marking speed: 1200 m/min (application dependent)

Marking area: Up to 259 mm x 393 mm

Number of lines of text: only limited by character size and marking field size

Character height: up to marking field size

Print rotation: 0-360°

Head mounting options: down (90°), or straight shooter (0°), variable length Beam Extension Units (BEU), 90° Beam Turning Unit (BTU)

Pilot Laser, focus finder and focus shift, available as standard

Code options: Code options: date, time, static text, variable text, serial numbers, shift codes, increment/decrement (batch count), 1D/2D barcodes, graphics and logos, Julian date, Custom date and time formats, 2D Data Matrix, QR including GS1.

IP rating protection class: IP54 or IP65 (optional)

The post Linx UVG5 appeared first on itec invention technology trading company شركه اختراع التكنولوجي للتجارة.

]]>
